Sonoplat Standard

Product Description

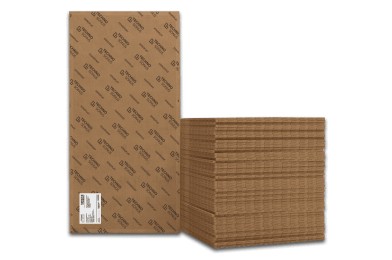

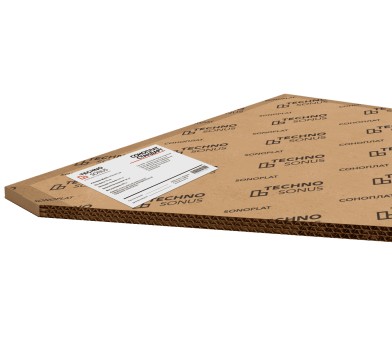

Sonoplat is a thin sound-insulating panel made of wood-fiber pressed sheet with a corrugated structure, filled with fine quartz stuffer.

Application

Composition

  • multi-ply cellulose corrugated carcass
  • fine quartz filler
Modifications
Characteristics
Storage and transportation
Certifications
Modifications
ModificationsSonoplat StandardSonoplat Standard Plus
Length, mm
12001200
Width, mm
600800
Thickness, mm
1212
Area, m2
0.720.96
Weight, kg
1317
Characteristics
ParameterSonoplat StandardSonoplat Standard Plus
Airborne noise insulation index, Rw, dB
3636
Thermal conductivity coefficient λ, W/(m*K)
0.170.17
Surface density, kg/m2
18.818.8
Static load, t/m2
<65<65
Combustibility group
G4G4
Storage period*
24 months24 months

* subject to storage and transportation conditions.

After the warranty period of storage has expired, the products must be checked for compliance with the declared characteristics and, if they comply with the declared characteristics, the period of storage may be extended.

Storage and transportation
ParameterSonoplat StandardSonoplat Standard Plus
Packing type
palletpallet
Panels per pallet, pcs.
5050
Packing with pallet dimentions (LxWxH), mm
1200 x 600 x 7501200 x 800 x 750
Packaging weight, kg
650850
Packaging volume, m3
0.540.72
Loading norm for 82m3 eurotruck, panels
16001100
Loading norm for 82m3 eurotruck, pallets
3222

Side or rear Eurotruck loading by a forklift.

Sonoplat panels shall be stored in dry, enclosed premises, away from atmospheric precipitation. Vertical storage of panels is not allowed.

The panels shall be acclimatized for at least 72 hours in a stack of no more than 10 pieces. Installation is allowed in a dry room (temperature not less than 15°C and humidity not more than 60%).

The filler of the panels is in a free-flowing state. If the panels are damaged during loading operations, the damaged area is sealed with Sonoplat Band.

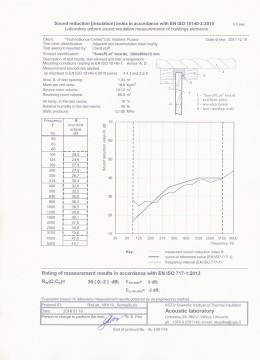

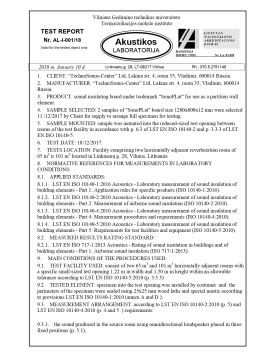

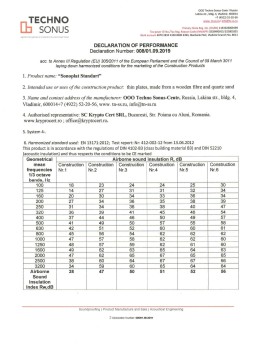

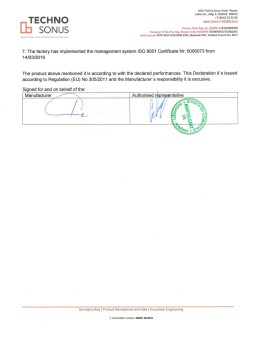

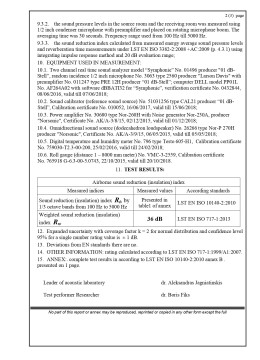

Certifications
