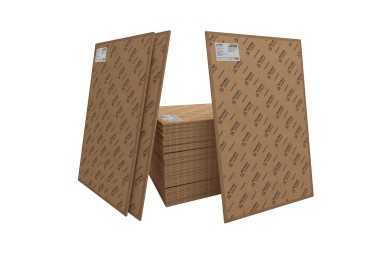

Sonoplat Standard Plus
Product Description
Sonoplat is a thin sound-insulating panel made of wood-fiber pressed sheet with a corrugated structure, filled with fine quartz stuffer.
Composition
- multi-ply cellulose corrugated carcass
- fine quartz filler
| Modifications | Sonoplat Standard | Sonoplat Standard Plus |
|---|---|---|
Length, mm | 1200 | 1200 |
Width, mm | 600 | 800 |
Thickness, mm | 12 | 12 |
Area, m2 | 0.72 | 0.96 |
Weight, kg | 13 | 17 |
| Parameter | Sonoplat Standard | Sonoplat Standard Plus |
|---|---|---|
Airborne noise insulation index, Rw, dB | 36 | 36 |
Thermal conductivity coefficient λ, W/(m*K) | 0.17 | 0.17 |
Surface density, kg/m2 | 18.8 | 18.8 |
Static load, t/m2 | <65 | <65 |
Combustibility group | G4 | G4 |
Storage period* | 24 months | 24 months |
* subject to storage and transportation conditions.
After the warranty period of storage has expired, the products must be checked for compliance with the declared characteristics and, if they comply with the declared characteristics, the period of storage may be extended.
| Parameter | Sonoplat Standard | Sonoplat Standard Plus |
|---|---|---|
Packing type | pallet | pallet |
Panels per pallet, pcs. | 50 | 50 |
Packing with pallet dimentions (LxWxH), mm | 1200 x 600 x 750 | 1200 x 800 x 750 |
Packaging weight, kg | 650 | 850 |
Packaging volume, m3 | 0.54 | 0.72 |
Loading norm for 82m3 eurotruck, panels | 1600 | 1100 |
Loading norm for 82m3 eurotruck, pallets | 32 | 22 |
Side or rear Eurotruck loading by a forklift.
Sonoplat panels shall be stored in dry, enclosed premises, away from atmospheric precipitation. Vertical storage of panels is not allowed.
The panels shall be acclimatized for at least 72 hours in a stack of no more than 10 pieces. Installation is allowed in a dry room (temperature not less than 15°C and humidity not more than 60%).
The filler of the panels is in a free-flowing state. If the panels are damaged during loading operations, the damaged area is sealed with Sonoplat Band.
