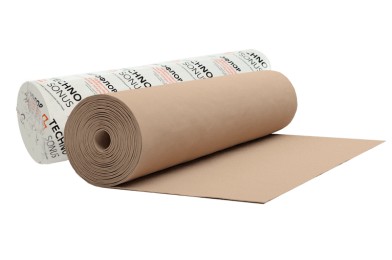

Vibrofloor

Product Description

Vibrofloor is a universal sound insulation  rolled material from polyester fiber of primary treatment. Produced in accordance with up-to-date requirements to acoustical engineering. The material is used for floor insulation against noise impacts during floating floor installation, and as an underlayer for finished floor coverings (parquet, laminate, etc.)

Application

Composition

  • polyester fiber of primary treatment
Modifications
Characteristics
Storage and transportation
Certifications
Modifications
ModificationsVibrofloor 15m
Length, mm*
15000
Width, mm*
1000
Thickness, mm*
4
Roll area, m2*
15
Weight of m2, kg*
0.3
Roll Weight, kg*
4.5

* Allowable Tolerances: up to 4%

Characteristics
ParameterVibrofloor
Force at Rupture (length), H
450
Surface Density, g/m2
350
Material Thickness under 2 kPa Loading, mm
3.45
Irregular Mass Distribution,%
4
Thermal Conductivity Coefficient λ, (W/m °C)
0.036
Under Laminate Layer of 6 mm, ΔL nw, dB
20
Under Parquet Board of 15mm, ΔL nw, dB
18
Under Floating Screed with 100 kg/m2
Surface Density, ΔL nw, dB
25
Storage period*
24 months

* subject to storage and transportation conditions.

After the warranty period of storage has expired, the products must be checked for compliance with the declared characteristics and, if they comply with the declared characteristics, the period of storage may be extended.

Storage and transportation
ParameterVibrofloor
Package
roll
Package Size with Pallet, (LxWxH), mm
1050 х 280 х 280
Roll Area, m2
15
Package Weight, kg
4.5
Package Volume, m3
0.065
82 m3 Euro Trailer Loading Capacity, rolls, pcs
800

The products shall be stored in ventilated warehouses at a distance of at least 1 m from heating devices, temperature not lower than -40ºC and not higher than +40ºC. Relative air humidity 60-80%.

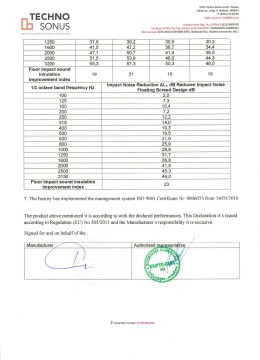

Certifications
