TSI FP
Product Description
TSI FP is a multi-ply soundproofing and vibration-damping material consisting of a high-density needle-punched calibrated mat produced mechanically and flame-retardant glass fabric cover. Owing to its fire-resisting properties the material may be used in facilities with strict fire safety requirements.
Composition
- needle-punched calibrated mat

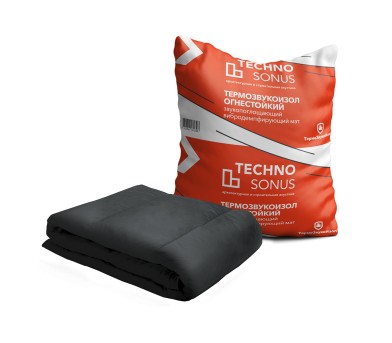

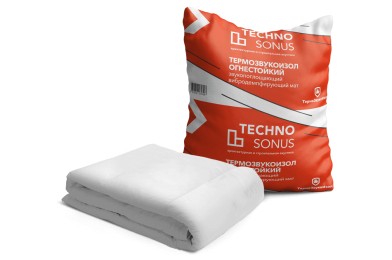

- glass fabric (white / black)
| Modifications | TSI FP |
|---|---|
Length, mm** | 5000 |
Width, mm** | 1500 |
Thickness, mm* | 13 |
Area, m2 | 7.5 |
* - the thickness of the material is indicated in a relaxed (not compressed) state.
** - dimensions include a protective cover made of non-woven material. Length tolerance: ±0.1m. Width tolerance: 1450 m ±0.05m.
| Parameter | TSI FP |
|---|---|
Impact sound insulation improvement index, ΔLnw, dB | 31 |
Thermal conductivity coefficient λ, W/(m∙℃) | 0.0333 |
Area density, kg/m2 | 1.8 |
Fire hazard class | nonflammable |
Storage period* | 24 months |
* subject to storage and transportation conditions.
After the warranty period of storage has expired, the products must be checked for compliance with the declared characteristics and, if they comply with the declared characteristics, the period of storage may be extended.
| Parameter | TSI FP |
|---|---|
Size, (LxWxH), mm | 700 x 500 x 350 |
Material area, m2 | 7.5 |
Packing volume, m3 | 0.12 |
Packing weight, kg * | 14 |
82 m3 Euro Trailer Loading Capacity, rolls | 600 |
* - depending on the permissible deviations in size, density and moisture content of the material, the weight of the package may vary from the declared one.
TSI mats should be transported in covered bodies. Laying material on top of each other without height restrictions is allowed. When transporting, loading, unloading and storing mats, it is necessary to ensure their safety from damage, contamination and moisture.
TSI mats shall be stored in dry, enclosed premises or under a canopy in packages, away from atmospheric precipitation and groundwater. When storing, packages should be placed without sagging on wooden pallets, boards or other support materials.
The material is loaded manually without pallets for a larger load, therefore, a rigid crate in the truck is required. On customer request, the material may be stacked on pallets. But in this case loading norms are significantly reduced.

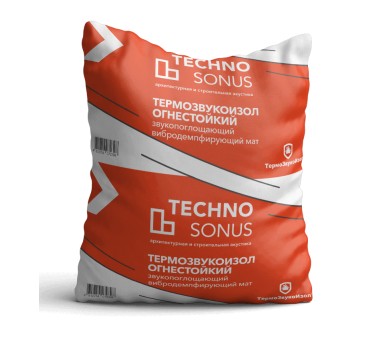

All the rolls are packed by a vacuum press, so packaging damage leads to a "swelling" of the roll and increase of its overall dimensions. Be careful not to damage protective packaging while carrying!
