TechnoSonus BP Standard
Product Description

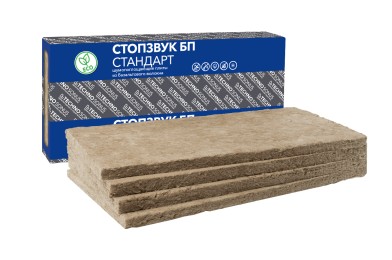

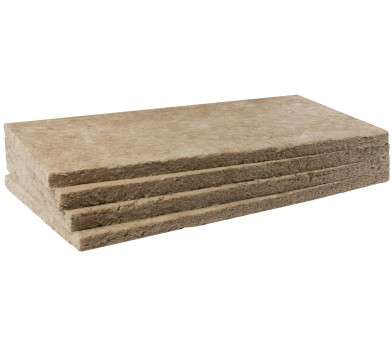

TechnoSonus BP Standard is a sound-absorbing basalt fiber board. The competitive advantages of this product are the special manufacturing technology without use of phenol-formaldehyde resins and optimally selected density (50-55 kg/m³) resulting in high sound insulation performance.
Composition
- mineral (rock) wool fibers
- bio binder
| TechnoSonus BP Standard | |
|---|---|
Length, mm | 1200 |
Width, mm | 600 |
Thickness, mm | 50 |
Board area, m2 | 0.72 |
Package quantity, pcs | 4 |
Package area, m2 | 2.88 |
| TechnoSonus BP Standard | |
|---|---|
Acoustic noise reduction coefficient, NRC | 0.9 |
Density, kg/m3 | 50(±10%) |
Fire hazard class | КМ0 |
Short term water absorption by partial immersion, min, kg/m2 | 1.0 |
Thermal conductivity coefficient (λ), W/m °С | 0.035 |
Organic content, mass %, max | 2.5 |
Short term water absorption, min | 1 |
Short term water absorption by partial immersion, min, kg/m2 | 3 |
Comparative vapour permeability | 1 |
Water absorption by volume, %, max | 1.5 |
Single-layer sheeting with soundproofing gypsum board AcousticGyps, Rw, dB | 54 |
Double-layer sheeting with soundproofing gypsum board AcousticGyps, Rw, dB | 57 |
Storage period* | 24 months |
* subject to storage and transportation conditions.
After the warranty period of storage has expired, the products must be checked for compliance with the declared characteristics and, if they comply with the declared characteristics, the period of storage may be extended.
| TechnoSonus BP Standard | |
|---|---|
Packing type | pack |
Package size (LxWxH), mm | 1200 х 600 х 200 |
Package volume, m3 | 0.144 |
Package weight, kg | 7.5 |
Packaging per pallet, pcs. | 36 |
Pallets per truck, pcs. | 14 |
Euro trailer loading capacity, pcs. | 504 |
The products shall be transported in covered bodies. During transportation and storage, it is necessary to lay the products flat and ensure their safety from damage, contamination and moisture.
The products shall be stored in dry, enclosed premises or under a canopy in packages, away from atmospheric precipitation and groundwater. When storing, packages should be placed without sagging on wooden pallets, boards or other support materials.
Loading into the truck is carried out in multiples of pallets. The pallet size is 1200x1800 mm. Stretch-hood film is used to pack the pallet.
