TechnoSonus BP Premium
Product Description

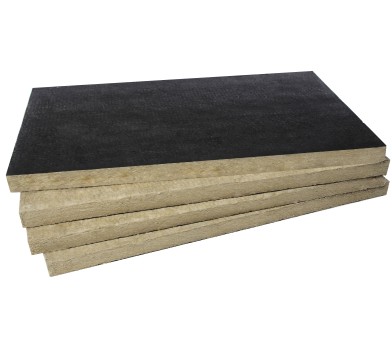

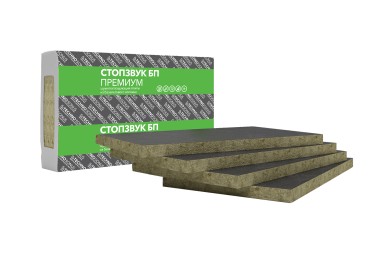

TechnoSonus BP Premium is a sound absorbing basalt fiber based board lined with glass cloth. The main differences between the material and its analogues are the optimally selected density (60 kg/m³) and high mechanical strength. The unique production technology developed by the TechnoSonus specialists involves random arrangement of fibers and through-board-thickness homogeneity of the structure, resulting in improvement of sound insulation performance of any framework structure.
Composition
- mineral (rock) wool fibers
- synthetic binder
- glass cloth
| TechnoSonus BP Premium 1m | TechnoSonus BP Premium 1.2m | |
|---|---|---|
Length, mm | 1000 | 1200 |
Width, mm | 600 | 600 |
Thickness, mm | 50 | 50 |
Board Area, m2 | 0.6 | 0.72 |
Package quantity, pcs | 4 | 4 |
Package area, m2 | 2.4 | 2.88 |
| Parameter | TechnoSonus BP Premium |
|---|---|
Acoustic noise reduction coefficient, NRC | 0.95 |
Density, kg/m3 | 60(±10%) |
Fire hazard class | КМ0 |
Short term water absorption by partial immersion, min, kg/m2 | 1.0 |
Thermal conductivity coefficient (λ), W/m °С | 0.035 |
Organic content, mass %, max | 2.5 |
Short term water absorption, min | 1 |
Short term water absorption by partial immersion, min, kg/m2 | 3 |
Comparative vapour permeability | 1 |
Water absorption by volume, %, max | 1.5 |
Single-layer sheeting with soundproofing gypsum board AcousticGyps, Rw, dB | 56 |
Double-layer sheeting with soundproofing gypsum board AcousticGyps, Rw, dB | 59 |
Storage period* | 24 months |
* subject to storage and transportation conditions.
After the warranty period of storage has expired, the products must be checked for compliance with the declared characteristics and, if they comply with the declared characteristics, the period of storage may be extended.
| TechnoSonus BP Premium 1m | TechnoSonus BP Premium 1.2m | |
|---|---|---|
Packing type | pack | pack |
Package size (LxWxH), mm | 1000 х 600 х 210 | 1200 х 600 х 210 |
Package volume, m3 | 0.126 | 0.158 |
Package weight, kg | 6.1 | 7.33 |
Packaging per pallet, pcs. | 33 | 33 |
Pallets per truck, pcs. | 11 | 14 |
Euro trailer loading capacity, pcs. | 363 | 462 |
The products shall be transported in covered bodies. During transportation and storage, it is necessary to lay the products flat and ensure their safety from damage, contamination and moisture.
The products shall be stored in dry, enclosed premises or under a canopy in packages, away from atmospheric precipitation and groundwater. When storing, packages should be placed without sagging on wooden pallets, boards or other support materials.
Loading into the truck is carried out in multiples of pallets. The pallet size is 1200x1800 mm. Stretch-hood film is used to pack the pallet.
