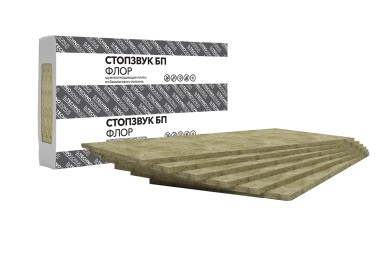

TechnoSonus BP Floor

Product Description

TechnoSonus BP Floor is a flame-retardant basalt fiber board, used as a sound insulation layer in the floating floor construction. High soundproofing performance due to the reduced dynamic stiffness, resulting in the reduction in impact and airborne sound pressure level in floor construction, is achieved owing to horizontal direction of fibers.

Application

Composition

  • mineral (rock) wool fibers
  • synthetic binder
Modifications
Characteristics
Storage and transportation
Certifications
Modifications
ModificationsTechnoSonus BP Floor
Length, mm
1200
Width, mm
600
Thickness, mm
20
Board Area, m2
0.72
Package quantity, pcs
8
Package area, m2
5.76
Characteristics
ParameterTechnoSonus BP Floor
Impact noise reduction under screed, ΔLnw, dB
35
Density, kg/m3
105(±10%)
Fire hazard class
КМ0
Compressive stress at 10% relative deformation, kPa, min
15
Thermal conductivity coefficient (λ), W/m °C
0.035
Short term water absorption, kg/m2, min
1
Long-term water absorption by partial immersion, kg/m2, max
3
Index of additional insulation of airborne noise one layer - 20mm under screed ΔRw, dB
11
Index of additional insulation of airborne noise double layer - 40mm under screed ΔRw, dB
13
Storage period*
24 months

* subject to storage and transportation conditions.

After the warranty period of storage has expired, the products must be checked for compliance with the declared characteristics and, if they comply with the declared characteristics, the period of storage may be extended.

Storage and transportation
ModificationsTechnoSonus BP Floor
Packing type
pack
Package size (LxWxH), mm
1200 х 600 х 160
Package volume, m3
0.12
Package weight, kg
12.5
Packaging per pallet, pcs.
42
Pallets per truck, pcs.
14
Euro trailer loading capacity, pcs.
588

The products shall be transported in covered bodies. During transportation and storage, it is necessary to lay the products flat and ensure their safety from damage, contamination and moisture.

The products shall be stored in dry, enclosed premises or under a canopy in packages, away from atmospheric precipitation and groundwater. When storing, packages should be placed without sagging on wooden pallets, boards or other support materials.

Loading into the truck is carried out in multiples of pallets. The pallet size is 1200x1800 mm. Stretch-hood film is used to pack the pallet.

Certifications
