TechnoSonus Hydro

Product Description

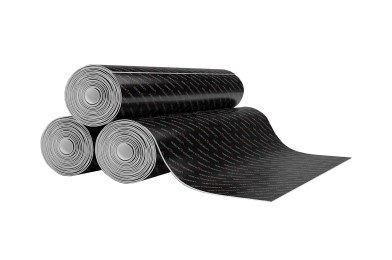

TechnoSonus Hydro is a rolled two-ply material made of a bitumen-polymer membrane and gas foamed polyethylene. The product is an excellent solution for water- and soundproofing of premises of any type. Suitable for floating floor constructions to protect from impact noise.

Application

Composition

  • polymeric-bitumen binder
  • gas foamed polyethylene
  • protective polymer film
Modifications
Characteristics
Storage and transportation
Modifications
ModificationsTechnoSonus Hydro
Length, mm*
15000
Width, mm*
1000
Thickness, mm*
4.5
Area, m2
15
Weight of m2, kg
1.8
Roll Weight, kg
27

* Length: 15m (±200 mm), Width: 1 m (±30 mm), Thickness: 4.5 mm (±0.8 mm)

Characteristics
ParameterTechnoSonus Hydro
Impact Sound Insulation Improvement Index, ΔLnw, dB
27
Thermal Conductivity Coefficient (λ), W/(m °C)
0.038
Heat Absorption Index, W/m2 °C
≤8.5
Water Resistance at 0.2 MPa during 2 h
absolute
Dynamic Elasticity Modulus under Loading, MPa
≤0.7
Tensile Breaking Force, H
70
Material operating temperature
up to -5°C
Storage period*
24 months

* subject to storage and transportation conditions.

After the warranty period of storage has expired, the products must be checked for compliance with the declared characteristics and, if they comply with the declared characteristics, the period of storage may be extended.

Storage and transportation
ParameterTechnoSonus Hydro
Package
pallet
Pallet Size, (LxWxH), mm
1200 х 1000 х 1500
No. of Rolls per Pallet, pcs
18
Pallet Weight, kg
486 ± 54
Pallet Volume, m3
1.8
82 m3 Euro Trailer Loading Capacity, pallet, pcs
26
82 m3 Euro Trailer Loading Capacity, rolls, pcs*
468

* - number of rolls on a pallet may vary depending on the customer’s demands according to loading standards.

The products shall be stored vertically on pallets. Placement of pallets on one another is not allowed.

The products shall be stored and transported under conditions that protect them from mechanical damage, direct sunlight, precipitation and other destructive substances.

By agreement with the consumer, other storage and transportation conditions are allowed if additional measures are taken to prevent damage to the product.

The products shall be stored in original packages away from sources of heat and UV radiation in a dry place at max. 35°C.

IMPORTANT! If the product is stored at a temperature below 5°C, it shall be conditioned at a room temperature for min. 24 hours.
