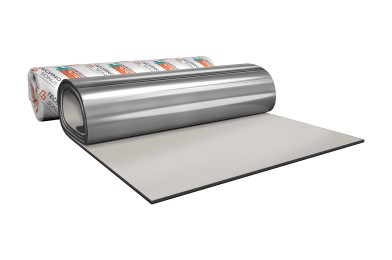

FLEX AL SA
Product Description
FLEX is a line of soundproofing materials based on elastomer rubber and mineral-polymeric membrane of high density. The combination ensures maximum effciency in noise reduction at minimum thickness of the material. The product is excellent solution for soundproofing of utility systems and services including ventilation ducts. The material is easy to cut and work with, health friendly.
The product has an additional layer of aluminum foil for protection of mechanical damage and aggressive external environment.
Composition
- soft layer: foam rubber
- dense layer: membrane based on polymers, high-density rubber, and mineral components (baryta)
- aliminum foil
| Modifications | FLEX | FLEX self-adhesive | FLEX AL | FLEX AL self-adhesive |
|---|---|---|---|---|
Length, mm * | 2500 | 2500 | 2500 | 2500 |
Width, mm * | 1000 | 1000 | 1000 | 1000 |
Thickness, mm | 12 / 18 / 27 | 12 / 18 / 27 | 12 | 12 |
Area, m2 | 2.5 | 2.5 | 2.5 | 2.5 |
Surface Density, kg/m2 | 4.4 | 4.4 | 4.4 | 4.4 |
* size tolerance (for material with thickness of 18 mm and 27 mm): up to 5 cm.
| Parameter | FLEX 12mm | FLEX 18mm | FLEX 27mm |
|---|---|---|---|
Thermal Conductivity Coefficient, dry weight, max., W/(m °C) 0/20/40 | 0.032 / 0.034 / 0.036 | 0.032 / 0.034 / 0.036 | 0.032 / 0.034 / 0.036 |
Airborne Noise Isolation Index, Rw, dB | 28 | 29 | 30 |
Impact sound insulation improvement index, ΔLnw, dB | 33 | 34 | 35 |
Density, g/m3 | 2000/40±15 * | 2000/40±15 * | 2000/40±15 * |
Ecological Compliance | Asbestos-free, w/o CFC-HCFC | Asbestos-free, w/o CFC-HCFC | Asbestos-free, w/o CFC-HCFC |
Oil and Benzine Resistance | resistant | resistant | resistant |
Biological Stability | stable | stable | stable |
Odour | neutral | neutral | neutral |
Storage period ** | 24 months | 24 months | 24 months |
* foam rubber heat-insulating layer
** subject to storage and transportation conditions.
After the warranty period of storage has expired, the products must be checked for compliance with the declared characteristics and, if they comply with the declared characteristics, the period of storage may be extended.
| FLEX | |
|---|---|
| Recommended temperature for installation | +5 - +35°C |
| Recommended operating temperature | -20 - +60°C |
The products shall be stored horizontally on pallets. Placement of pallets on one another is not allowed.
The products are delivered in rolls with cardboard tubes inside.
The products shall be stored in original packages away from sources of heat and UV radiation in a dry place at max. 30°C.
In cases of transportation or storage of the product at temperatures below +10°C, before installation it is necessary to keep it in a room for 24 hours at a temperature of +20°C.
