Sonoplat Combi

Product Description

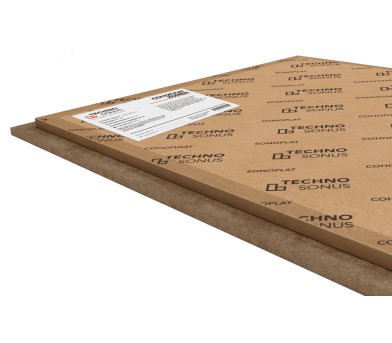

Sonoplat Combi is a composite sound-insulating panel for thin frameless soundproofing systems. An elastic light substrate in the panel composition allows for mounting it directly on the smoothed surface of insulated walls or partitions.

Application

Composition

  • multilayer cellulose corrugated frame
  • fine quartz filler
  • wood fiber backing (softboard)
Modifications
Characteristics
Storage and transportation
Certifications
Modifications
ModificationsSonoplat Combi
Length, mm
1200
Width, mm
600
Thickness, mm*
22
Area, m2
0.72
Weight, kg
15

* Sizing w/o 30 mm rebated edge.

Characteristics
ParameterSonoplat Combi
Airborne noise insulation index, Rw, dB
42
Thermal conductivity coefficient λ, W/(m*K)
0.17
Surface density, kg/m2
20.8
Flammability group
G4
Storage period*
24 months

* subject to storage and transportation conditions.

After the warranty period of storage has expired, the products must be checked for compliance with the declared characteristics and, if they comply with the declared characteristics, the period of storage may be extended.

Storage and transportation
ParameterSonoplat Combi
Packing type
pallet
Panels per pallet, pcs.
25
Packing with pallet dimentions (LxWxH), mm
1230 х 630 х 650
Packaging weight, kg
375
Packaging volume, m3
0.5
Loading norm for 82m3 eurotruck, panels
725
Loading norm for 82m3 eurotruck, pallets
29

Side or rear Eurotruck loading by a forklift.

Sonoplat panels shall be stored in dry, enclosed premises, away from atmospheric precipitation. Vertical storage of panels is not allowed.

The panels shall be acclimatized for at least 72 hours in a stack of no more than 10 pieces. Installation is allowed in a dry room (temperature not less than 15°C and humidity not more than 60%).

The filler of the panels is in a free-flowing state. If the panels are damaged during loading operations, the damaged area is sealed with Sonoplat Band.
