AcousticGyps M1
Product Description

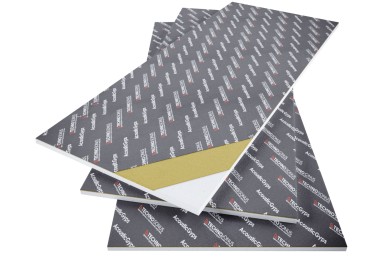

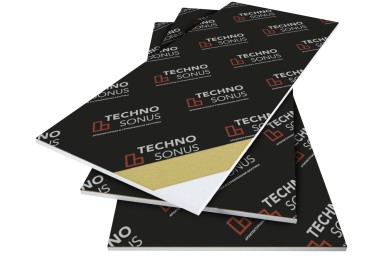

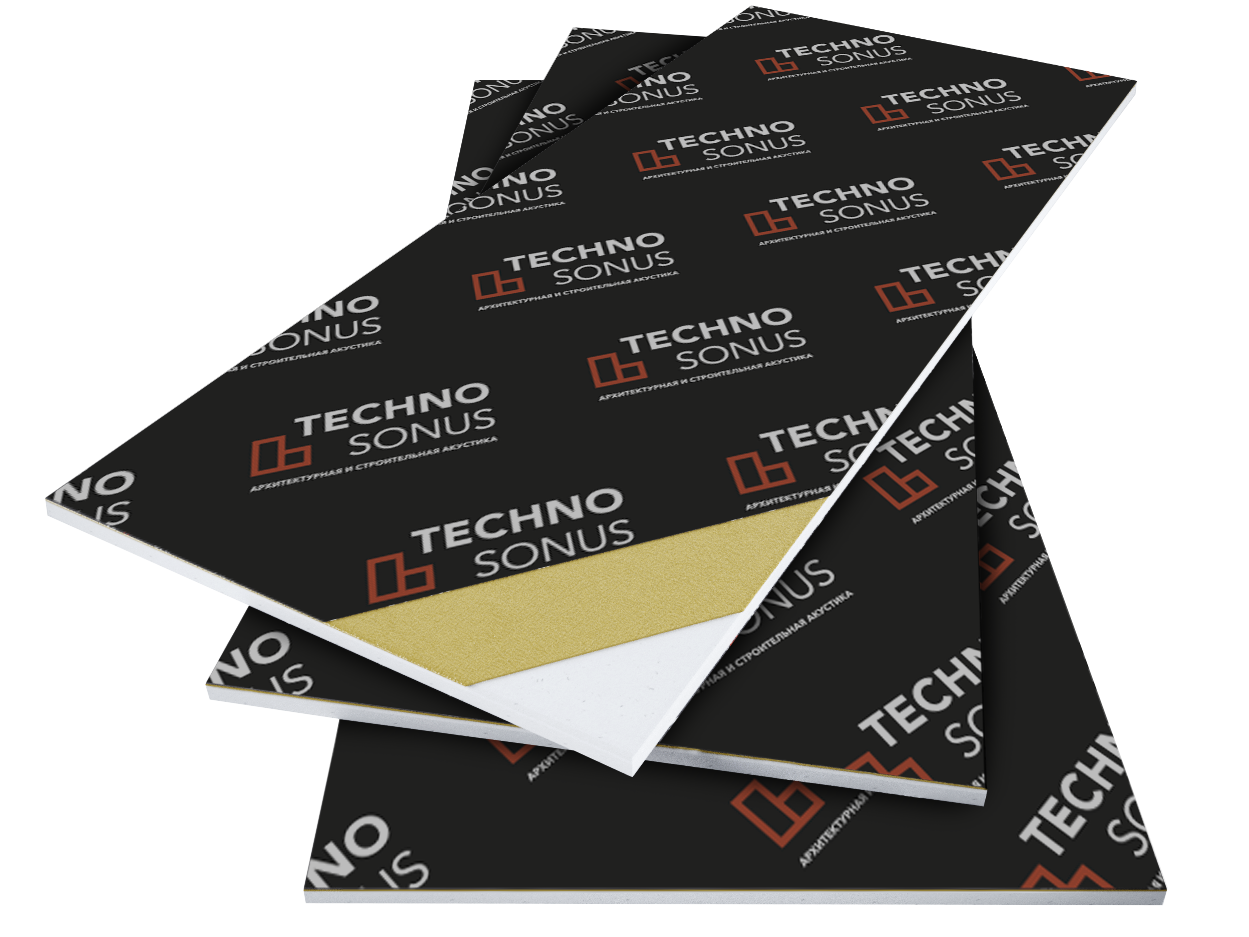

AcousticGyps M1 is a composite sound-insulating panel consisting of reinforced gypsum-fiber sheet of increased density and viscoelastic membrane. Wind-tight and vapour barrier covering provides mechanical stability. Used as a sound insulation layer in sheathed framed walls, ceilings, or partitions finished with sound insulation gypsum boards. Special design of the panel ensures high sound insulation and vibration-damping performance.
Composition
- highly filled polymer elastic membrane
- reinforced gypsum board of increased density
- nonwoven wind-tight and vapour barrier membrane
- elastic adhesive compound
| Modifications | AcousticGyps M1 |
|---|---|
Length, mm * | 1200 |
Width, mm * | 590 |
Thickness, mm * | 17 |
Area, m2 | 0.708 |
* Tolerance: length ±2.0mm, width ±1.5mm, thickness ±1.0mm
| Parameter | AcousticGyps M1 |
|---|---|
Airborne sound reduction index Rw, dB | 43 |
Fire hazard class | КМ1 |
Surface density, kg/m2 | 18.4 |
Storage period* | 24 months |
* subject to storage and transportation conditions.
After the warranty period of storage has expired, the products must be checked for compliance with the declared characteristics and, if they comply with the declared characteristics, the period of storage may be extended.
| Modifications | AcousticGyps M1 |
|---|---|
Packing type | pallet |
Number of Boards per Pallet, pcs. | 60 |
Area on Pallet, m2 | 42.48 |
Pallet Weight, kg | 675 ± 10 |
Number of Pallets in Euro Trailer, pcs. | 28 |
Area in Trailer, m2 | 1189.44 |
The products shall be stored horizontally on pallets. Placement of pallets on one another is not allowed.
The products can be shipped in cardboard boxes or individually. Before installation, the panels shall undergo mandatory acclimatization for 1-2 days.
The products shall be stored away from sources of heat and UV radiation in a dry place at max. 30°C.
When loading and unloading, protect the material from impacts.
Euro Trailer loading: rear or side.
