AcousticGyps Basic 70

Product Description

AcousticGyps Basic 70 is a higher level sound-insulating panel of TM AcousticGyps product line. Quickly and easily installed effective system for additional sound insulation of walls in the premises of all types. High sound insulation performance. Frameless structure installation method allows for significant reducing of costs for additional materials and time for completion of works. AcousticGyps Basic 70 system with a construction thickness of 8.2cm decreases the sound pressure level by 14dB, thus ensuring compliance with the acoustic standards required for both residential and commercial premises.

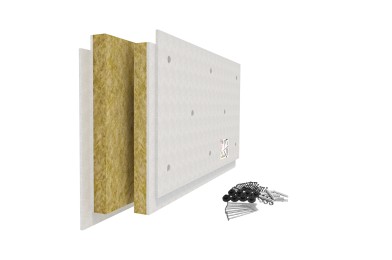

Used together with mounting kit AcousticGyps Basic 70 (supplied with the panel).

Application

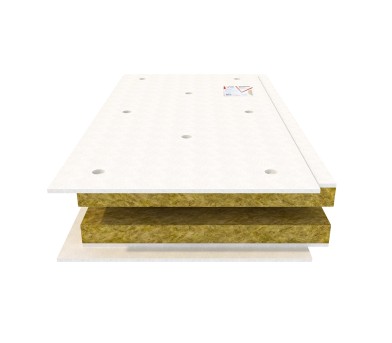

Composition

  • gypsum-fiber sheet
  • high-density acoustic mineral wool
Modifications
Characteristics
Storage and transportation
Certifications
Modifications
ModificationsAcousticGyps Basic 40AcousticGyps Basic 70
Length, mm*
12001200
Width, mm*
600600
Thickness, mm*
4070
Panel Area, m2
0.720.72
Panel Weight, kg
1919.5

* sizing w/o 50 mm rebated edge

Characteristics
ParameterAcousticGyps Basic 40AcousticGyps Basic 70
Improvement of airborne sound reduction index ΔRw, dB
13-1415-18
Surface density, kg/m2
26.327.08
Fire hazard class
КМ1КМ1
Storage period*
24 months24 months

* subject to storage and transportation conditions.

After the warranty period of storage has expired, the products must be checked for compliance with the declared characteristics and, if they comply with the declared characteristics, the period of storage may be extended.

Storage and transportation
ParameterAcousticGyps Basic 40AcousticGyps Basic 70
Packing type
palletpallet
Number of Boards per Pallet, pcs.
2515
Area on Pallet, m2
1810.8
Pallet Weight, kg
475292.5
Number of Pallets in Euro Trailer, pcs.
2828
Area in Trailer, m2
594356.4
Full loaded weight, kg
156759652.5

The products shall be stored horizontally on pallets. Placement of pallets on one another is not allowed.

The products can be shipped in cardboard boxes or individually. Before installation, the panels shall undergo mandatory acclimatization for 1-2 days.

The products shall be stored away from sources of heat and UV radiation in a dry place at max. 35°C.

When loading and unloading, protect the material from impacts.
