AcousticGyps 2m (12.5mm)
Product Description
AcousticGyps is a premium class gypsum building board of increased density, reinforced, with high sound insulation performance. Manufactured with application of unique technologies the board has several predominant features: extended fire-endurance period, high resistance to moisture and impact.
Composition
- high-density gypsum
- cardboard facing sheets
- glass fiber
| Modifications | AcousticGyps 2m (12.5mm) | AcousticGyps 2.5m (12.5mm) | AcousticGyps 2m (15mm) |
|---|---|---|---|
Length, mm | 2000 | 2500 | 2000 |
Width, mm | 1200 | 1200 | 1200 |
Thickness, mm | 12.5 | 12.5 | 15 |
Sheet Area, m2 | 2.4 | 3 | 2.4 |
Sheet Weight, kg | 28.5 | 35.7 | 34.3 |
Weight 1m2, kg | 11.9 | 11.9 | 14.3 |
| Parameter | AcousticGyps 12.5mm | AcousticGyps 15mm |
|---|---|---|
Airborne sound reduction index, Rw | 29 | 31 |
Density, kg/m3 | 1020 | 1020 |
Bending strength of 12.5-mm board | over 725 (longitudinal) over 300 (cross-direction) | over 360 (cross-direction) |
Water absorption (2-hour soak period), % by weight | 25 max | 25 max |
Fire hazard class | КМ1 | КМ1 |
Storage period* | unlimited | unlimited |
* subject to storage and transportation conditions.
After the warranty period of storage has expired, the products must be checked for compliance with the declared characteristics and, if they comply with the declared characteristics, the period of storage may be extended.
| Modifications | AcousticGyps 2m (12.5mm) | AcousticGyps 2.5m (12.5mm) | AcousticGyps 2m (15mm) |
|---|---|---|---|

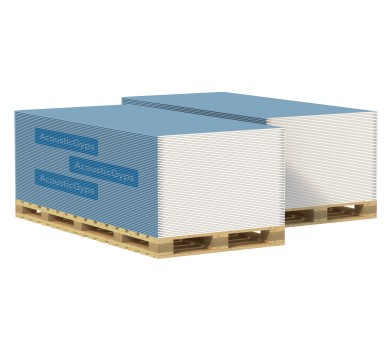

Packing type | pallet | pallet | pallet |
Number of Boards per Pallet, pcs. | 50 | 50 | 48 |
Area on Pallet, m2 | 117.6 | 147 | 115 |
Pallet Weight, kg | 1425 | 1785 | 1646 |
Number of Pallets in Euro Trailer, pcs. | 15 | 12 | 13 |
Area in Trailer, m2 | 1764 | 1764 | 1498 |
Full Loaded Weight, kg | 21375 | 21420 | 21403 |
The products shall be stored horizontally on pallets. It is allowed to place up to 5 pallets on top of each other using lining material under the pallets supports.
The products can be shipped individually. Before installation, the panels shall undergo mandatory acclimatization for 1-2 days.
The products shall be stored away from sources of heat and UV radiation in a dry place at max. 35°C.
When loading and unloading, protect the material from impacts.
Euro Trailer loading: rear or side.
