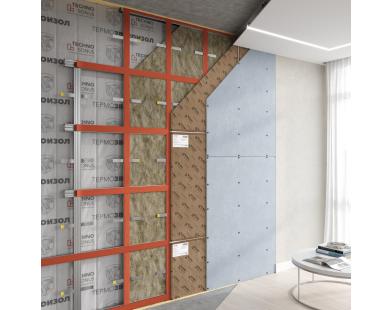

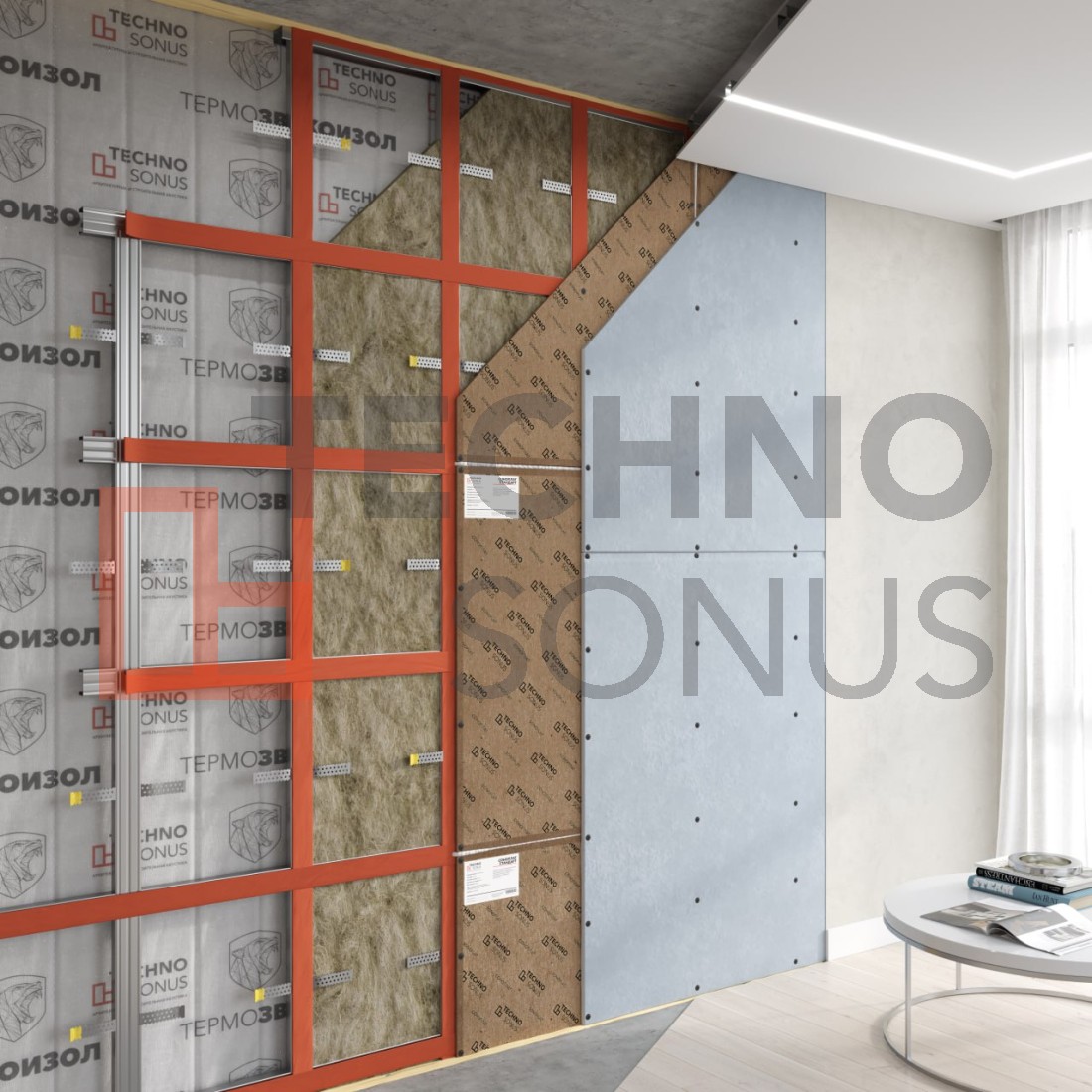

Standard P Wall Sound Insulation Frame System

Standard P Wall Sound Insulation Frame System

Standard P Wall Sound Insulation Frame System

Description

The second-level soundproofing system. The most common and demanded system. It is recommended for use in multi-apartment residential buildings of enhanced comfort, hotels, hospitals, health centres, etc. The system ensures the best soundproofing effect against airborne noise and significantly reduces structure-borne noises. The main system elements are thin and heavy panels Sonoplat.

Application

Basic components

  • Sonoplat Standard Plus
  • TSI Standard
  • TechnoSonus BP Praim
  • Sonokrep Protector Pro
  • Sonetic Silicone
  • Bautger 8kg
  • Vibrofloor Band
  • Sonoplat Band
  • TechnoSonus DB Sealing Band
  • Reinforced Tape
  • AcousticGyps PN 28x27
  • AcousticGyps PN 60x27
  • AcousticGyps 2m
  • Self-Threading Screws
  • Dowel Nails
Equipment
Characteristics
Characteristics
TitleStandard P Wall Sound Insulation Frame System
System thickness
68.5mm
Airborne noise reduction, Rw
62/65dB
Increase in sound insulation, ΔRw
17/15dB
