Premium P Wall Sound Insulation Frame System

Premium P Wall Sound Insulation Frame System

Premium P Wall Sound Insulation Frame System

Description

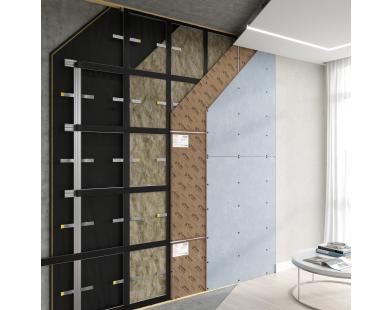

The third-level soundproofing system is the most effective. It may be used both in multi-apartment residential buildings and apartments of enhanced comfort, as well as in special purpose facilities (recording studios, conference rooms, movie and concert halls, restaurants, karaoke-bars, etc.).  The system reduces all frequency range sound transmission through walls and floors and makes the sounds inaudible for humans (at the sound volume of up to 80-85 dB). The main system elements are composite soundproofing membranes and  Sonoplat panels.

Application

Basic components

  • Sonoplat Standard Plus
  • TechnoSonus FT 55
  • TechnoSonus BP Praim
  • Sonokrep EP 20
  • Sonetic Silicone
  • Bautger 8kg
  • TechnoSonus V100 Band
  • TechnoSonus VEM Band
  • Sonoplat Band
  • Reinforced Tape
  • AcousticGyps PN 28x27
  • AcousticGyps PN 60x27
  • AcousticGyps 2m
  • Self-Threading Screws
  • Dowel Nails
Equipment
Characteristics
Video
Characteristics
TitlePremium P Wall Sound Insulation Frame System
System thickness
69.5mm
Airborne noise reduction, Rw
66/70dB
Increase in sound insulation, ΔRw
21/20dB
