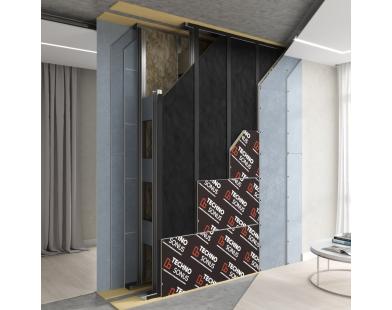

Profi M1 Partition Sound Insulation System (double frame)
Description
The system with maximum noise absorption and sound insulation for separating two rooms from each other. It is used in cinemas, clubs, restaurants and premises with a maximum concentration of people. The main element of the system is the complex soundproofing panel AcousticGips M1.
Application
Basic components
- AcousticGyps M1
- TechnoSonus BP Premium
- Sonetic Silicone
- Vibrofloor Band
- TechnoSonus DB Sealing Band
- AcousticGyps PN 100x40
- AcousticGyps PN 100x50
- AcousticGyps 2m
- Self-Threading Screws
- Dowel Nails
Equipment
Characteristics
Equipment
Profi M1 Partition Sound Insulation System (double frame)
Characteristics
| Title | Profi M1 Partition Sound Insulation System (double frame) |
|---|---|
System thickness | 489mm |
Airborne noise reduction, Rw | 74dB |
Fire resistance limit | El90 |
