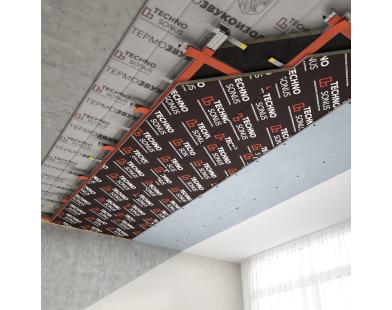

Standard M1 Ceiling Sound Insulation Frame System

Standard M1 Ceiling Sound Insulation Frame System

Standard M1 Ceiling Sound Insulation Frame System

Description

The higher-level soundproofing system. It is used in multi-apartment residential buildings of enhanced comfort, hotels, hospitals, health centres, etc. The system ensures the best soundproofing effect against airborne noise and significantly reduces structure-borne noises. The main system elements are composite soundproofing membranes AcousticGyps M1.

Application

Basic components

  • AcousticGyps M1
  • TSI Standard
  • TechnoSonus BP Premium
  • Sonokrep Protector Pro
  • Sonetic Silicone
  • Bautger 8 kg
  • Vibrofloor Band
  • TechnoSonus DB Sealing Band
  • Reinforced Tape
  • AcousticGyps PN 28x27
  • AcousticGyps PN 60x27
  • AcousticGyps 2m
  • Self-Threading Screws
  • Dowel Nails
Equipment
Characteristics
Characteristics
TitleStandard M1 Ceiling Sound Insulation Frame System
System thickness
90.5mm
Airborne noise reduction, Rw
73dB
Increase in sound insulation, ΔRw
22dB
Impact noise reduction,ΔLnw
16dB
