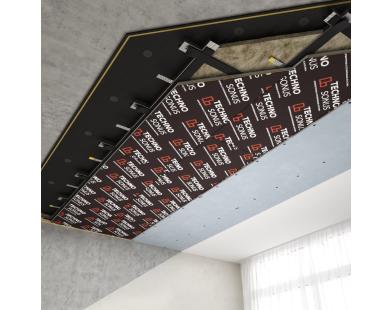

Premium M1 Ceiling Sound Insulation Frame System

Premium M1 Ceiling Sound Insulation Frame System

Premium M1 Ceiling Sound Insulation Frame System

Description

The highest level soundproofing system is the most effective. It may be used in multi-apartment residential buildings and apartments of enhanced comfort, in special purpose facilities (recording studios, conference rooms, movie and concert halls, restaurants, karaoke-bars, etc.). The system reduces all frequency range sound transmission through walls and floors and ceilings and makes the sounds inaudible for humans (at the sound volume of up to 80-85 dB). The main system elements are AcousticGyps M1 boards.

Application

Basic components

  • AcousticGyps M1
  • FLEX SA
  • TechnoSonus BP Premium
  • Sonokrep EP 20
  • Sonetic Silicone
  • TechnoSonus V100 Band
  • Reinforced Tape
  • TechnoSonus VEM Band
  • AcousticGyps PN 28x27
  • AcousticGyps PN 60x27
  • AcousticGyps 2m
  • Self-Threading Screws
  • Dowel Nails
Equipment
Characteristics
Characteristics
TitlePremium M1 Ceiling Sound Insulation Frame System
System thickness
98.5mm
Airborne noise reduction, Rw
75dB
Increase in sound insulation, ΔRw
24dB
Impact noise reduction,ΔLnw
21dB
