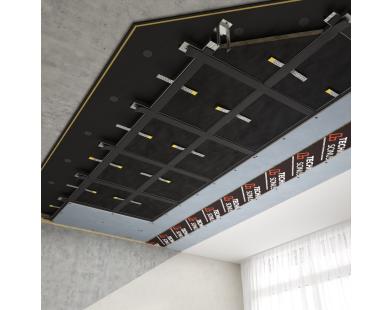

Premium M Ceiling Sound Insulation Frame System

Premium M Ceiling Sound Insulation Frame System

Premium M Ceiling Sound Insulation Frame System

Description

The third-level soundproofing system is the most effective. It may be used in multi-apartment residential buildings and apartments of enhanced comfort, in special purpose facilities (recording studios, conference rooms, movie and concert halls, restaurants, karaoke-bars, etc.). The system reduces all frequency range sound transmission through walls and floors and ceilings and makes the sounds inaudible for humans (at the sound volume of up to 80-85 dB). The main system elements are composite soundproofing Tecsound membranes and  Sonoplat panels.

Application

Basic components

  • Tecsound SY 70
  • Tecsound FT 55
  • StopZvuk BP Premium
  • Sonokrep EP 20
  • Sonetic
  • Bautger 8 kg
  • StopZvuk V100 Band
  • AcousticGyps PN 28x27
  • AcousticGyps PN 60x27
  • AcousticGyps 2m
Equipment
Characteristics
Characteristics
TitlePremium M Ceiling Sound Insulation Frame System
System thickness
98.5mm
Airborne noise reduction, Rw
74dB
Increase in sound insulation, ΔRw
24dB
Impact noise reduction,ΔLnw
21dB
