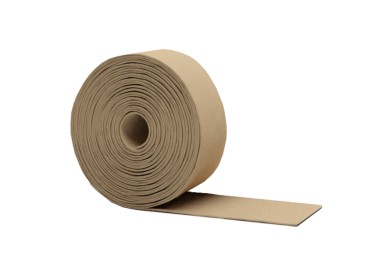

Vibrofloor Band
Product Description
Vibrofloor is a special-purpose vibration cushioning band from polyester fiber. It is used as acoustic isolation when installing frame and frameless soundproofing systems, and as filler in wood floor construction. Porous fiber structure gives unique damping behaviour to the band so that its vibroacoustic properties are retained under dynamic and static load stress.
Composition
- polyester fiber of primary treatment
| Modifications | Vibrofloor Band 6mm | Vibrofloor Band 4mm |
|---|---|---|
Length, mm | 15000 | 15000 |
Width, mm* | 100 | 100 |
Thickness, mm* | 6 | 4 |
Area, m2* | 1.5 | 1.5 |
* Allowable Tolerances: up to 4%
| Parameter | Vibrofloor Band |
|---|---|
Breaking Force along length, N | 450 |
Surface Density, g/m2 | 350 / 733 |
Thickness under 2 kPa Loading, mm | 3.45 |
Irregular Mass Distribution,% | 4 |
Thermal Conductivity Coefficient (λ), W/m °C | 0.036 |
| Modifications | Vibrofloor Band 6mm |
|---|---|
Package | roll |
Roll Diameter, mm | 340 |
Roll Width, mm | 100 |
Roll Volume, m3 | 0.009 |
Roll Weight, kg | 1.1 |
Euro Trailer Loading Capacity, rolls | 3960 |
Euro Trailer Weight at Complete Load, kg | 4515 |
Storage period is 24 months, subject to storage and transportation conditions.
After the warranty period of storage has expired, the products must be checked for compliance with the declared characteristics and, if they comply with the declared characteristics, the period of storage may be extended.
Products shall be stored in dry, ventilated warehouses, at a distance of at least 1 m from heating and heating devices, at an air temperature not lower than -40°C and not higher than +40°C and a relative air humidity of 60-80%.
When transporting, loading, unloading and storing it is necessary to ensure safety from impacts, damage, contamination and moisture. Transportation of the Band is carried out in a horizontal position.
The products are delivered in rolls packed in shrink bundling film. Delivery on pallets is possible if agreed.
