TechnoSonus DB Sealing Band

Product Description

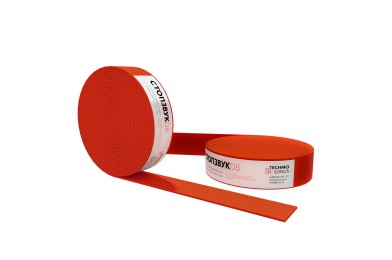

TechnoSonus DB Sealing Band is a self-adhesive material made of microcellular PE foam. The product is used for the creation of tight connection between guides of gypsum board profiles and gypsum board sheets thus enhancing acoustic protection and maintaining indoor comfort.

Application

Composition

  • microcellular PE foam
Modifications
Characteristics
Storage and transportation
Certifications
Modifications
TitleTechnoSonus DB
Length, mm
30000
Width, mm
50
Thickness, mm
2
Roll Area, m2
1.5
Roll Weight, kg
0.155
Characteristics
TitleTechnoSonus DB
Operating Temperature,°C
-60 to +100
Water Absorption, %
<1
Breaking Elongation, %
- longitudinal
- transversal

130
100
Pressure Resistance, Mpa
- by 10%
- by 25%
- by 50%

0.015
0.035
0.1
Relative Compression Set, %
- in 0.5 hours
- in 24 hours

16
10
Conductivity Factor, (λ), W/m°C
0.036
Dynamic Modulus of Elasticity, MPa
- under 2,000 kPa
- under 5,000 kPa

0.036
0.063
Storage and transportation
The sizeTechnoSonus DB
Rolls per Package, pcs
12
Roll Size (LxWxH), mm
310 x 310 x 590
Box Weight, kg
1.9
Box Volume, m3
0.057
Euro Trailer Loading Capacity, roll
17256
Euro Trailer Loading Capacity, package
1438
Euro Trailer Weight at Complete Load, kg
15818

Storage period is 24 months, subject to storage and transportation conditions.

After the warranty period of storage has expired, the products must be checked for compliance with the declared characteristics and, if they comply with the declared characteristics, the period of storage may be extended.

Products shall be stored in dry, ventilated warehouses, at a distance of at least 1 m from heating and heating devices, at an air temperature not lower than -40°C and not higher than +40°C and a relative air humidity of 60-80%. Before installation, the material shall be kept for a day in the room in which it will be used.

When transporting, loading, unloading and storing TechnoSonus DB Sealing Band, it is necessary to ensure safety from impacts, damage, contamination and moisture. Transportation of TechnoSonus DB Sealing Band is carried out in a horizontal position.

The product is delivered item-by-item, by rolls. Palletized delivery is also possible.

Certifications
