TechnoSonus Band

Product Description

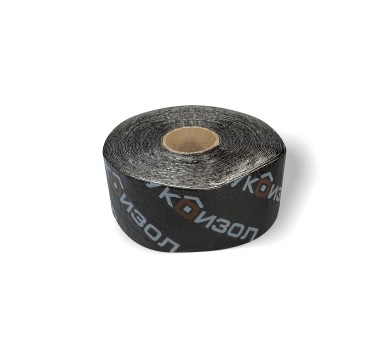

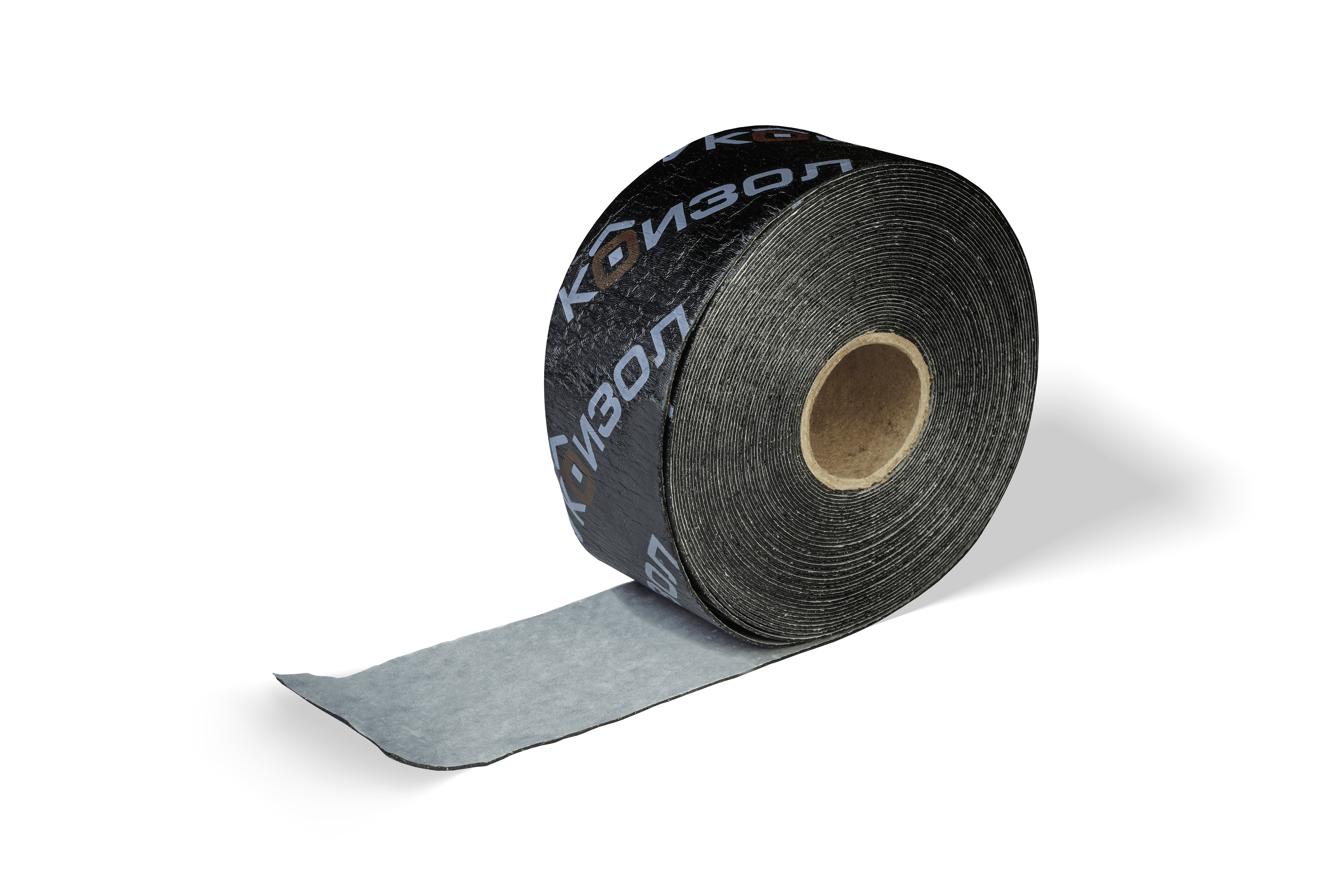

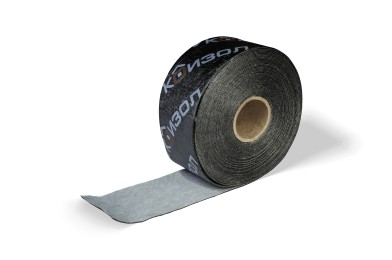

TechnoSonus Band is a thin elastic bitumen-based band of high strength, with adhesive layer on one side. It is designed for adhering and hermetic sealing of butt joints in soundproofing with bituminous rolled sound insulation materials.

Application

Composition

  • bitumen modified with synthetic rubber
  • protective film
  • adhesive layer
Modifications
Characteristics
Storage and transportation
Modifications
TechnoSonus Band
Length, mm
15000
Width, mm
75
Thickness, mm *
1.3
Roll Area, m2
1.125

* tolerance: ±0.1mm

Characteristics
TitleTechnoSonus Band
Waterproofing Capacity at 0.2 MPa during 2 hrs
absolute
Force at Rupture, N
70
Surface Density, kg/m2
1.9
Operating temperature range
+5°С – +80°С
Material softening point
90°С
Adhesion, H/cm
≥6
Water absorption within 24 hours
≤1%
Storage and transportation
TechnoSonus Band
Package
roll
Roll Area, m2
1.125
Roll Weight, kg
1
Roll Volume, m3
0.0017
82 m3 Euro Trailer Loading Capacity, pcs.
10280
Number of rolls in a pallet, pcs.
200
Pallet size (LxWxH), mm
1200 x 800 x 800
Pallet weight, kg
400

Storage period is 24 months, subject to storage and transportation conditions.

After the warranty period of storage has expired, the products must be checked for compliance with the declared characteristics and, if they comply with the declared characteristics, the period of storage may be extended.

The products shall be stored and transported in conditions that protect them from mechanical damage, exposure to direct sunlight, precipitation and other destructive substances.

The products are delivered in rolls. The products shall be stored away from sources of heat and UV radiation in a dry place at max. 35°C.
