Sonoplat Band
Product Description

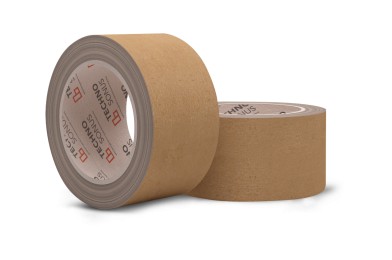

Sonoplat Band is a special-purpose self-adhesive band based on crepe paper. The product is used in soundproofing SonoPlat systems. The adhesive layer exhibits fine adhesion properties.
Composition
- crepe paper
- natural rubber
Modifications
Characteristics
Storage and transportation
Modifications
| Title | Sonoplat Band |
|---|---|
Length, mm | 40000 |
Width, mm | 50 |
Thickness, mm | 125 |
Roll Area, m2 | 2 |
Roll Weight, kg | 0.164 |
Characteristics
| Title | Sonoplat Band |
|---|---|
Adhesion to Steel, g/25.4 mm | 600 |
Tensile at Break, kg/25.4 mm | 7.5-10.2 |
Elongation at break, % | 10±4 |
Initial Grip, mm | 11 |
Compression Strain Index εd under 5 kPa | 0.35 |
Storage and transportation
| The size | Sonoplat Band |
|---|---|
Package | box |
No. of Rolls per Box, pcs | 54 |
Box Weight, kg | 9 |
Box Size (LxWxH), mm | 425 x 315 x 310 |
Box Volume, m3 | 0.04 |
Euro Trailer Loading Capacity, boxes | 2050 |
Euro Trailer Weight at Complete Load, kg | 18450 |
The products are delivered in boxes on pallets. Item-by-item delivery is possible.
