Sonokrep Protector
Product Description

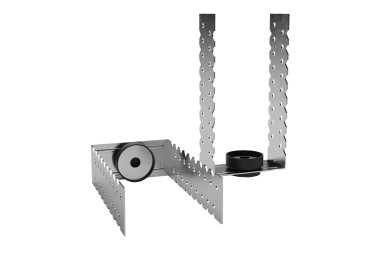

Sonokrep Protector is a basic anti-vibration mount used in sheathed frame structures of walls and ceilings for the reduction of vibration transfer and structure-borne noise. As a basis the U-shaped perforated metal hanger made of galvanized steel and located between two elastic rubber elements is used. The structure of the product excludes direct and rigid contact between framing and wall and ceiling bases, that is why the use of Sonokrep Protector improves the total sound insulation efficiency of the whole structure.
Composition
- rubber insulators with improved vibroinsulation performance
- straight hanger (steel plate thickness: 1 mm)
- metal washer
| Modifications | Sonokrep Protector |
|---|---|
Isolator Diameter, mm | 32 |
Isolator Height, mm | 18 |
Hanger Height, mm | 145 |
Weight, kg | 0.076 |
Max. Load, kg | 40 |
| Modifications | Sonokrep Protector |
|---|---|
Quantity per Box, pcs | 50 |
Box Weight, kg | 3.8 |
Box Size (LxWxH), mm | 365 х 185 х 70 |
Box Volume, m3 | 0.005 |
Storage period is 60 months, subject to storage and transportation conditions.
After the warranty period of storage has expired, the products must be checked for compliance with the declared characteristics and, if they comply with the declared characteristics, the period of storage may be extended.
Loading and unloading of vibrating suspensions in packaging must be carried out in a way that prevents mechanical damage. Loading, fastening, transportation and unloading of products must be carried out in accordance with the current rules for this type of vehicle.
Products should be stored in specially equipped warehouses, sorted by order, at temperatures from 0°C to 30°C in dry, indoor areas in conditions that prevent exposure to precipitation and groundwater.
The mountings shall be loaded by boxes. For large consignments palletization of cargo is possible.
