Sonokrep EP 20
Product Description

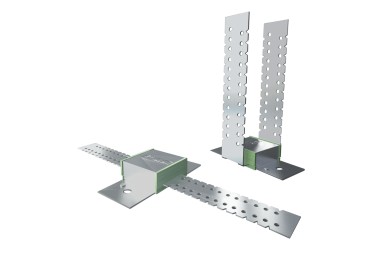

Sonokrep EP 20 is a professional anti-vibration mounting system used in sound insulation framed structures of walls and ceilings for the sound-insulating system efficiency improvement. The profile system is fixed on a straight perforated hanger, which is placed between two anti-vibration pads made from special elastomeric material and has no rigid connection with the metal framework of the mounting, thereby high anti-vibration performance is achieved. The material used as a vibration insulating element is Vibrafoam (Germany) having better vibration absorption performance as compared to the rubber insulating pads.
Composition
- high-grade galvanized steel frame
- Vibrafoam elastomer
- straight hanger (1 mm thickness of steel)
| Modifications | Sonokrep EP 20 | Sonokrep EP 30 |
|---|---|---|
Length, mm | 100 | 100 |
Width, mm | 40 | 40 |
Height, mm | 155 | 155 |
Thickness of Steel Sheet in Frame, mm | 1.5 | 1.5 |
Weight, kg | 0.184 | 0.198 |
Regulatory load, kg | 12.5-16 | 12.5-16 |
Efficiency of Sonokrep EP in the geometric mean frequency of the one-third octave band with a load of 15kg.
| Frequency indicators | Sonokrep EP 20 | Sonokrep EP 30 |
|---|---|---|
| 80Hz | 24.83 | 25.13 |
| 100Hz | 17.40 | 19.46 |
| 125Hz | 22.17 | 26.48 |
| 160Hz | 29.72 | 33.90 |
| 200Hz | 39.61 | 39.67 |
| 250Hz | 41.96 | 44.77 |
Regulatory load on Sonokrep EP 20 is 12.5-16 kg, maximum - 30 kg.
Regulatory load on Sonokrep EP 30 is 12.5-16 kg, maximum - 30 kg.
| Modifications | Sonokrep EP 20 | Sonokrep EP 30 |
|---|---|---|
Quantity per Box, pcs | 20 | 15 |
Box Weight, kg | 3.7 | 3 |
Box Size (LxWxH), mm | 365 х 190 х 105 | 365 х 190 х 105 |
Box Volume, m3 | 0.007 | 0.007 |
Storage period is 60 months, subject to storage and transportation conditions.
After the warranty period of storage has expired, the products must be checked for compliance with the declared characteristics and, if they comply with the declared characteristics, the period of storage may be extended.
Loading and unloading of vibrating suspensions in packaging must be carried out in a way that prevents mechanical damage. Loading, fastening, transportation and unloading of products must be carried out in accordance with the current rules for this type of vehicle.
Products should be stored in specially equipped warehouses, sorted by order, at temperatures from 0°C to 30°C in dry, indoor areas in conditions that prevent exposure to precipitation and groundwater.
The mountings shall be loaded by boxes. For large consignments palletization of cargo is possible.
