AcousticGyps PN 28x27

Product Description

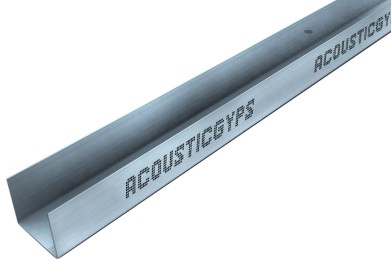

The reinforced profile for frame sheathed ceiling systems is made by steel band cold-rolling method. Serves as a guiding element for AcousticGyps PP 60x27 ceiling profile during installation of suspended ceiling frames and wall facings. Recommended for use in GKLZ AcousticGyps systems.

Application

Composition

  • galvanized steel
Modifications
Storage and transportation
Modifications
ModificationsAcousticGyps PN 28x27
Length, mm
3000
Width, mm
27
Thickness, mm
0.6
Height, mm
28
Weight, kg
1.08
Storage and transportation
ModificationsAcousticGyps PN 28x27
Package
briquette
No. of Profiles per Briquette, pcs
24
No. of Briquettes per Pallet, pcs
24
No. of Profiles per Briquette, linear m.
72
No. of Profiles per Palette, linear m.
1728
Pallet Size, HxWxL, mm
330 х 930 х 3000
Pallet Weight, kg
630

AcousticGypsum profiles must be transported in covered bodies. During transportation, loading and unloading and storage of profiles, their safety from damage, contamination and corrosion must be ensured.

Profiles are stored horizontally on pallets, in briquettes from 12 to 24 pcs. On a pallet you can place from 18 to 36 briquettes depending on the width/height. Packages must be stored in dry indoor areas under conditions that prevent exposure to precipitation and groundwater. Installation is carried out in moderately damp rooms under covering with moisture-resistant plasterboard.

Loading into trucks is performed by pieces, briquettes and pallets, according to Order.
