SAB Acoustic Premium
SAB Acoustic Premium
Product Description
SAB Acoustic Premium are light and flameproof panels with porous structure from Basotect melamine foam. Owing to low density and open foamy structure the panels show high sound absorption coeffcient within a wide frequency range even at a small thickness. Natural colours of panels are light grey or white.
Composition
- Melamine foam
- Colouring according to RAL chart
performance
and transportation

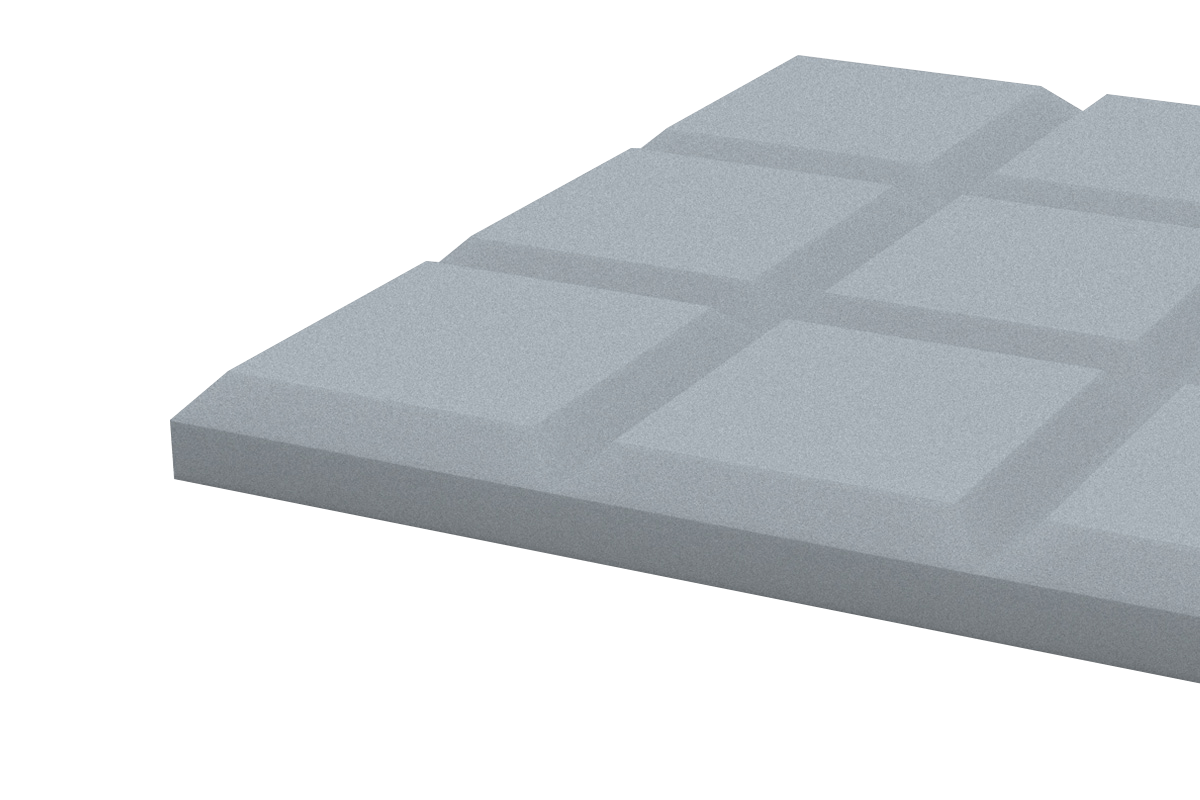

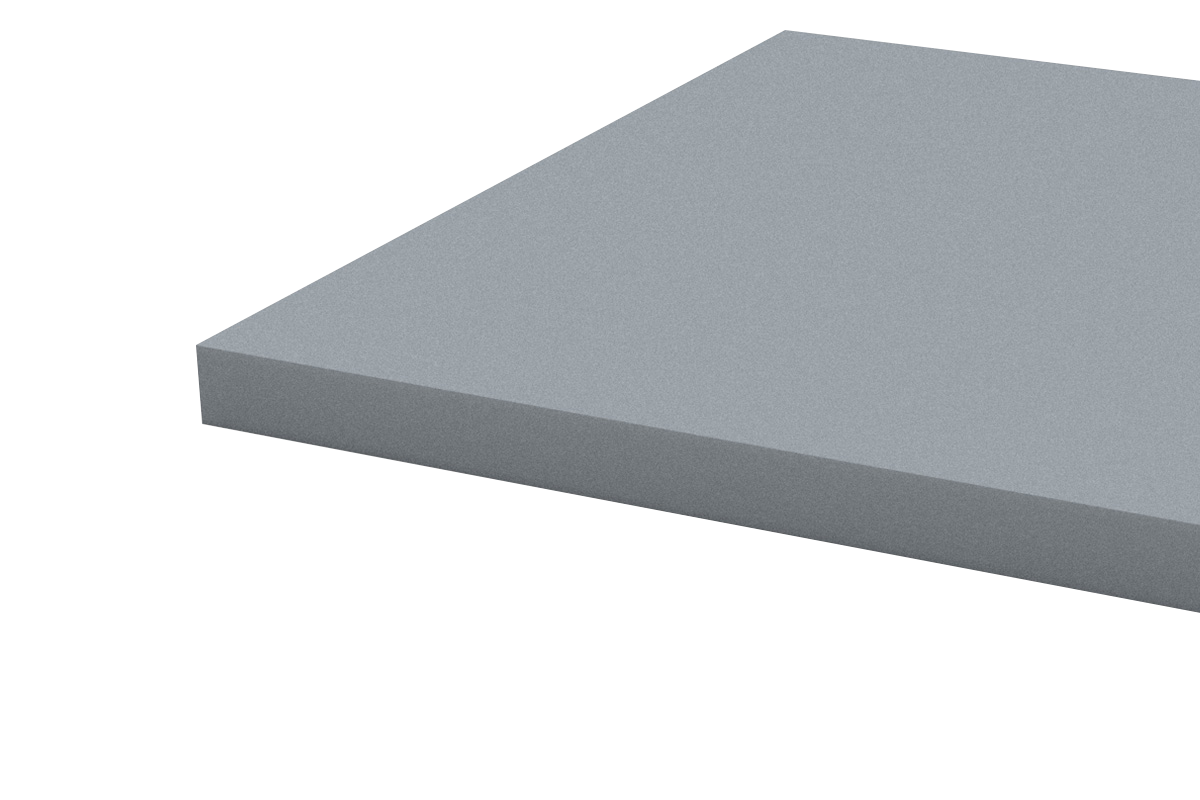

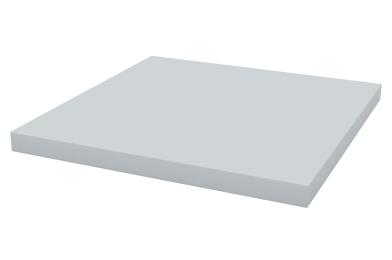

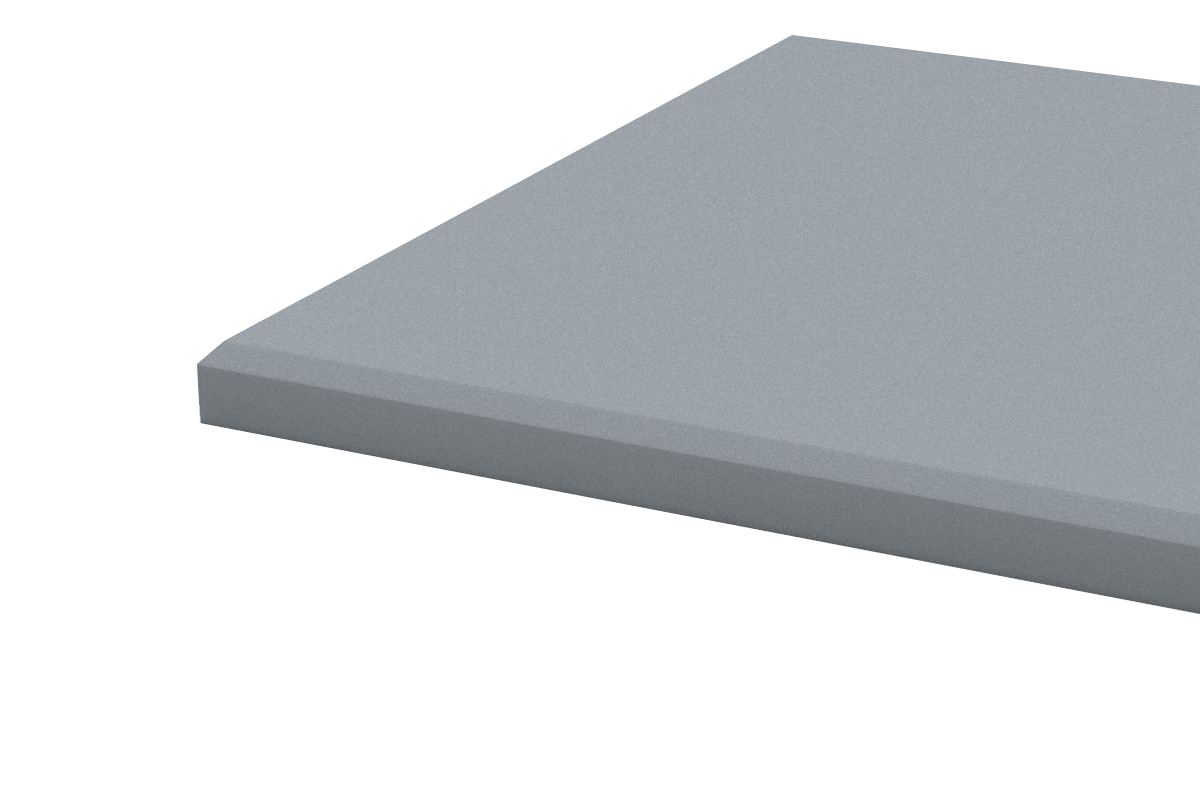

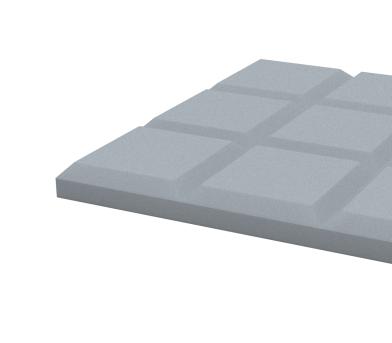

| Modification | P1 | P2 | P3 |
|---|---|---|---|
 |  |  | |
Panel size (LxW), m * | 0.6x0.6 1.2x0.6 | 0.6x0.6 1.2x0.6 | 0.6x0.6 |
Thickness, mm | 30, 40, 50 | 30, 40, 50 | 50 |
Panel area, m2 | 0.36 0.72 | 0.36 0.72 | 0.36 |
Colouring | light grey, white or according to RAL scale | light grey, white or according to RAL scale | light grey, white or according to RAL scale |
Fire safety class | КМ1 | КМ1 | КМ1 |
| Sab Acoustic Premium 30 mm acoustic noise reduction coefficient, NRC | 0.80 |
| Sab Acoustic Premium 40 mm acoustic noise reduction coefficient, NRC | 0.90 |
| Sab Acoustic Premium 50 mm acoustic noise reduction coefficient, NRC | 0.95 |
Storage period is 24 months, subject to storage and transportation conditions.
After the warranty period of storage has expired, the products must be checked for compliance with the declared characteristics and, if they comply with the declared characteristics, the period of storage may be extended.
When storing and transporting, the panels are positioned horizontally. Transportation is possible only in one tier; installation on top of other materials is allowed. Before installation, the panels must undergo acclimatization.
Painted panels require careful handling, since painting is carried out only on the top layer - bending of the panels is not allowed. The panels are transferred perpendicular to the horizon.
The change in size of foamed melamine depending on relative air humidity can be up to 4% (at a temperature of 23°C)
- For vertical storage - no more than 4 boxes in a vertical row.
- Do not get the product and packaging wet.
- Avoid contact with hard and sharp objects.
- Do not place panels and boxes on ends and corners.
- Fragile. Don't bend. Don't drop it.
- Install the panels higher than human height.
- Touch only with clean gloves.
- Don't hold it by one edge. Possible fracture.
