Belner Diffuser
Belner Diffuser
Product Description

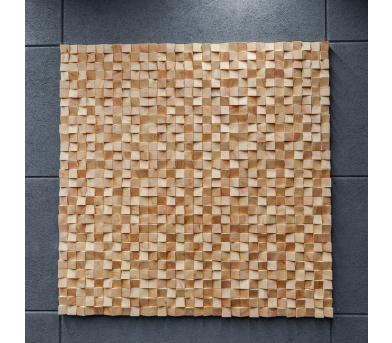

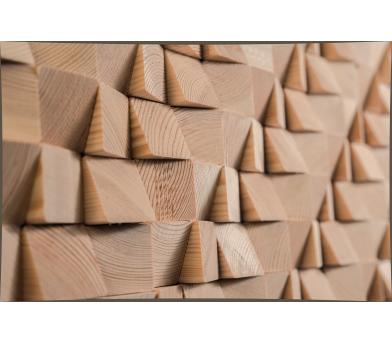

Belner acoustic diffuser is a shaped panel made of wooden blocks, which serves for acoustic correction of the room. The embossed façade of the panels ensures control of reflections, eliminates fluttering echoes, and makes the sound cleaner and more voluminous, that is why diffusers are used in facilities with high acoustic requirements (recording studios, rehearsal rooms, music classrooms, cinemas, etc.).
Composition
- Natural wood – extra pine, jointed timber
- Coating types: standard – colorless matte varnish; additional options – varnish (matte, glossy), colorless oil and protective wax, colored stain
- Dust brush included
and transportation

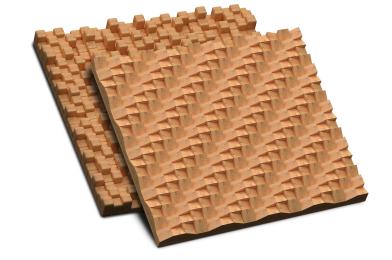

| Modification | BELNER Diffuser Wave | BELNER Diffuser Skyline |
|---|---|---|
 |  | |

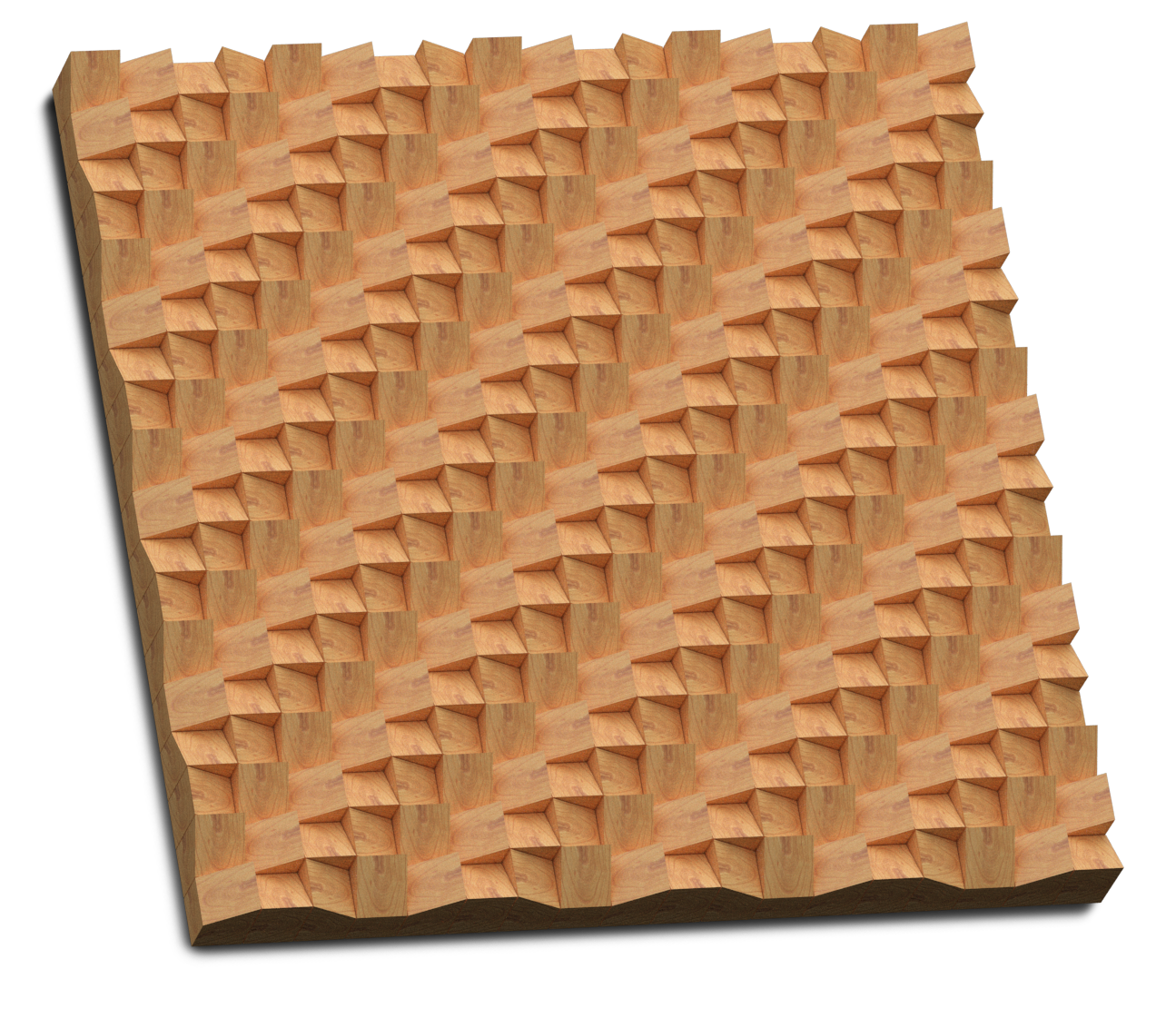

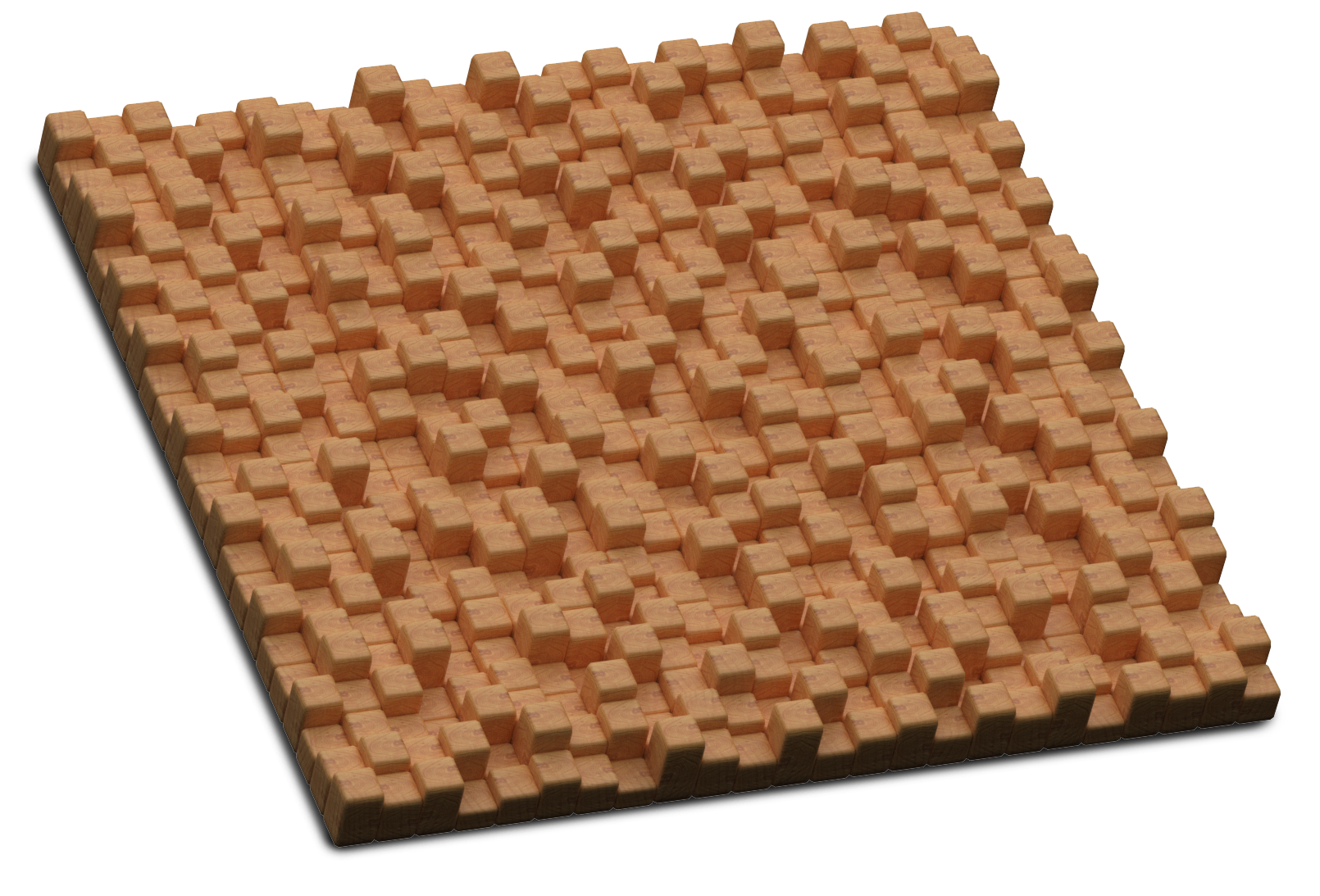

Description | assembly of beveled elements of different heights | assembly of rectangular elements of different heights |
Panel size (LxW), m * | 0.6x0.6 1.0x1.0 custom panel size to order | 0.6x0.6 1.0x1.0 custom panel size to order |
Thickness, mm | 50 | 50 |
Block size, mm | 40x40 | 40x40 |
* tolerance: ±10mm
The storage period is 12 months. After the expiration of the guaranteed storage period, the product must be inspected for compliance with the stated specifications. If compliance is confirmed, the storage period may be extended.
The panels must acclimate for 1 to 3 days before installation.
Transportation Conditions
The products are supplied in packaging that complies with standards and is necessary to ensure their preservation during transportation. The cardboard packaging and stretch film protect the items from mechanical damage, dirt, moisture, precipitation, and sunlight.
Panels may be transported by all means of transport in covered vehicles and containers that prevent moisture ingress, prolonged exposure to the elements, and temperature fluctuations, in accordance with the general rules for cargo transportation.
It is necessary to protect exposed corners and parts of the panels that may be damaged during transportation or storage.
- Product packages must not be pushed or dragged, as sliding of the products during such handling can damage their surface.
- Panels must be positioned strictly horizontally.
Storage Conditions
- The products must be stored in dry, ventilated premises with a relative air humidity of 40-60% and a temperature between +15°C and +25°C, protected from direct sunlight, and at a distance of no less than 1 meter from heating appliances.
- The products must be stored in a horizontal position on a level wooden platform or pallets, with a distance of 400-600 mm between the supporting elements to prevent sagging.
- Storage in a vertical position, resting on the ends, is not permitted.
