Product Description
Akustiline Medico are hygienic acoustic panels for suspended ceilings with high sound-absorbing properties. Suitable for medical premises, medical and preventive institutions, preschool institutions, kitchens, canteens and other facilities where the finishing requires increased sanitary requirements.
The surface of the panels is treated with an impact-resistant sound-proof Medico coating (ISO 5). The material does not support the development of staphylococcus (MRSA), bacteria and microorganisms, has a painted edge, and is easy to wet clean and disinfect.

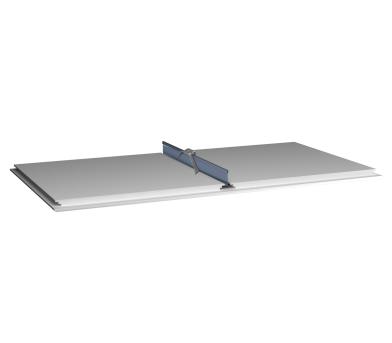

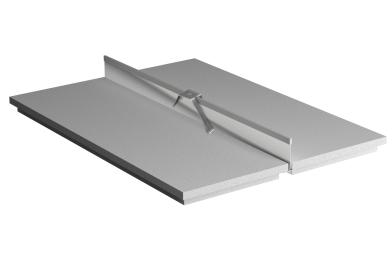

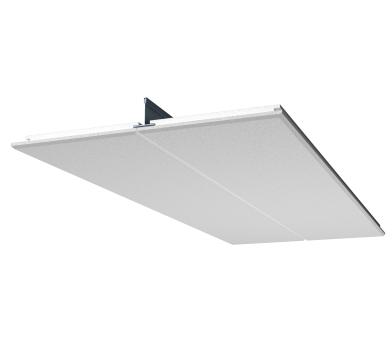

Installation is carried out using Akustiline suspension system.
Application
Composition
- fireproof mineral fiber
- special acoustic coating Medico (класс ISO 5)
- coloring according to RAL scale (the edge is painted in the color of the panel)
performance
and transportation

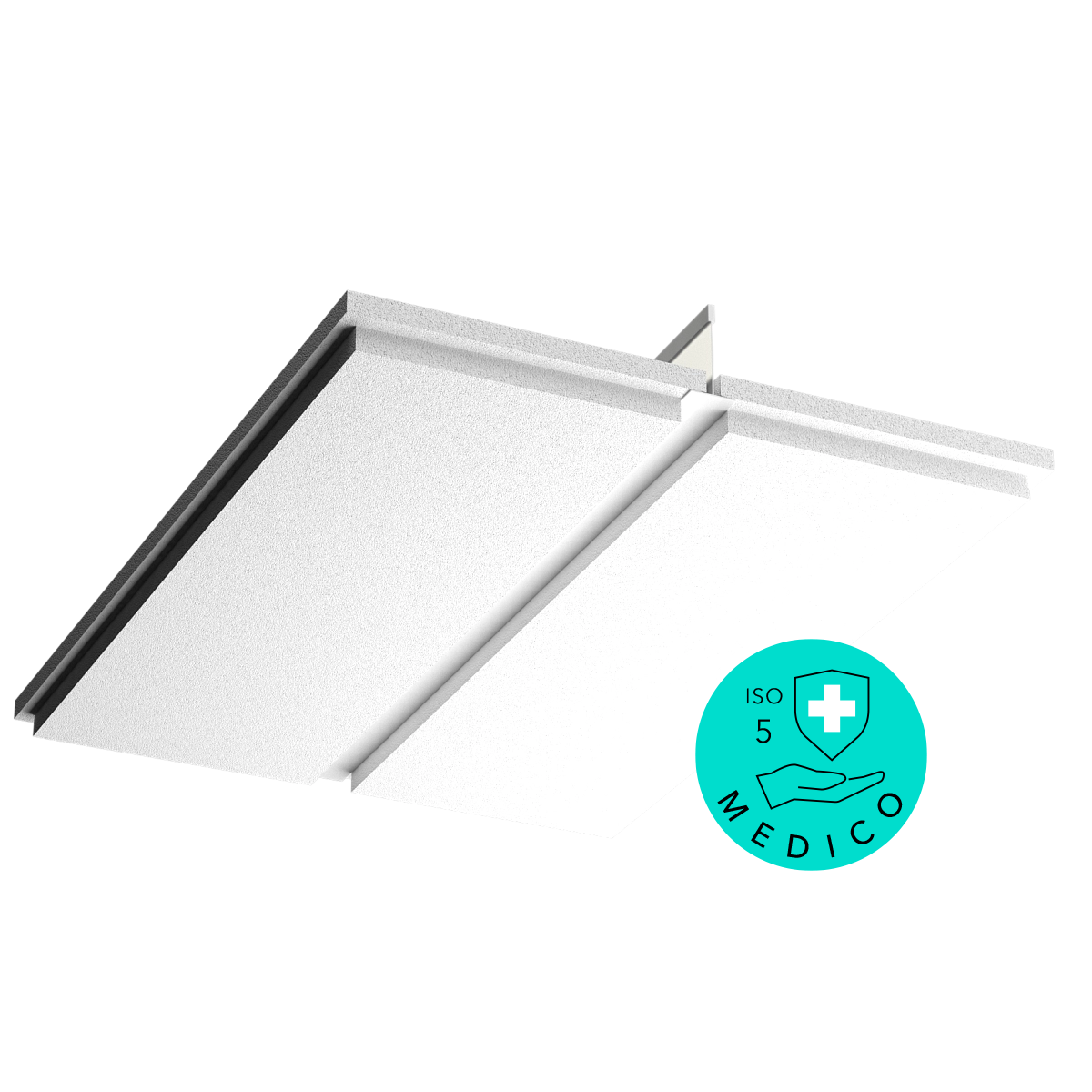

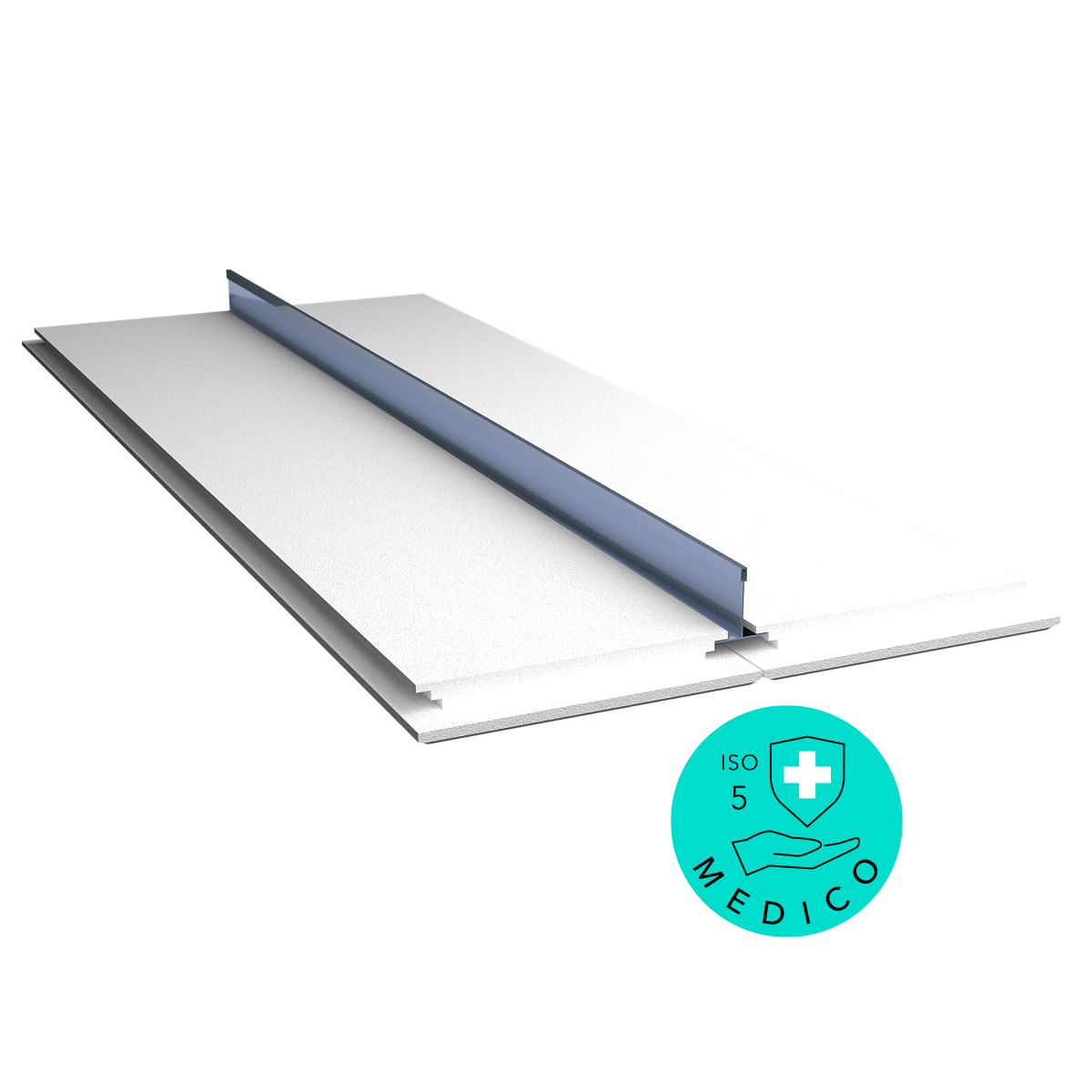

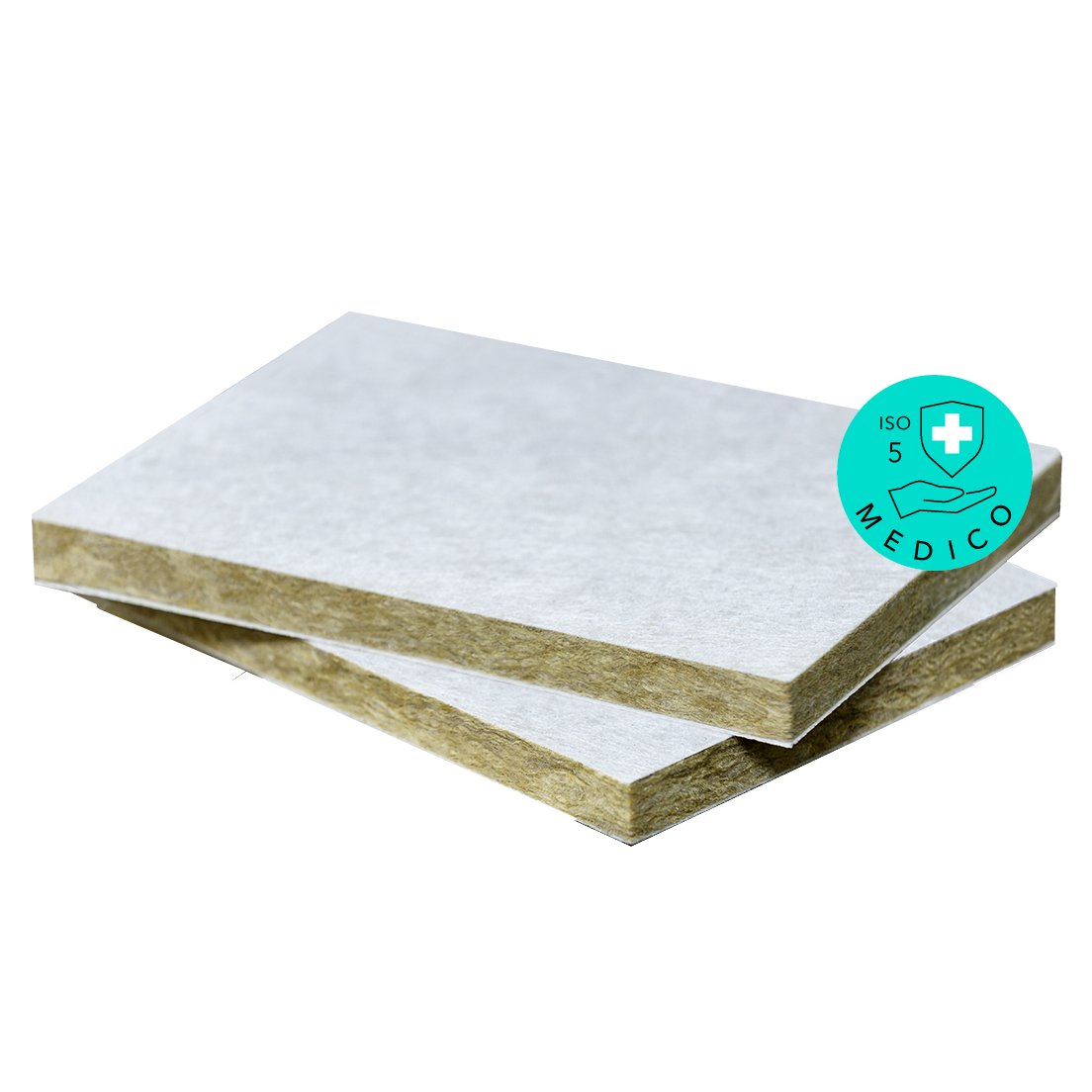

| Modifications | Akustiline Medico X | Akustiline Medico E15/E24 | Akustiline Medico Baffle/Twist | Akustiline Medico A |
|---|---|---|---|---|
 |  |  |  | |
 |  | |||

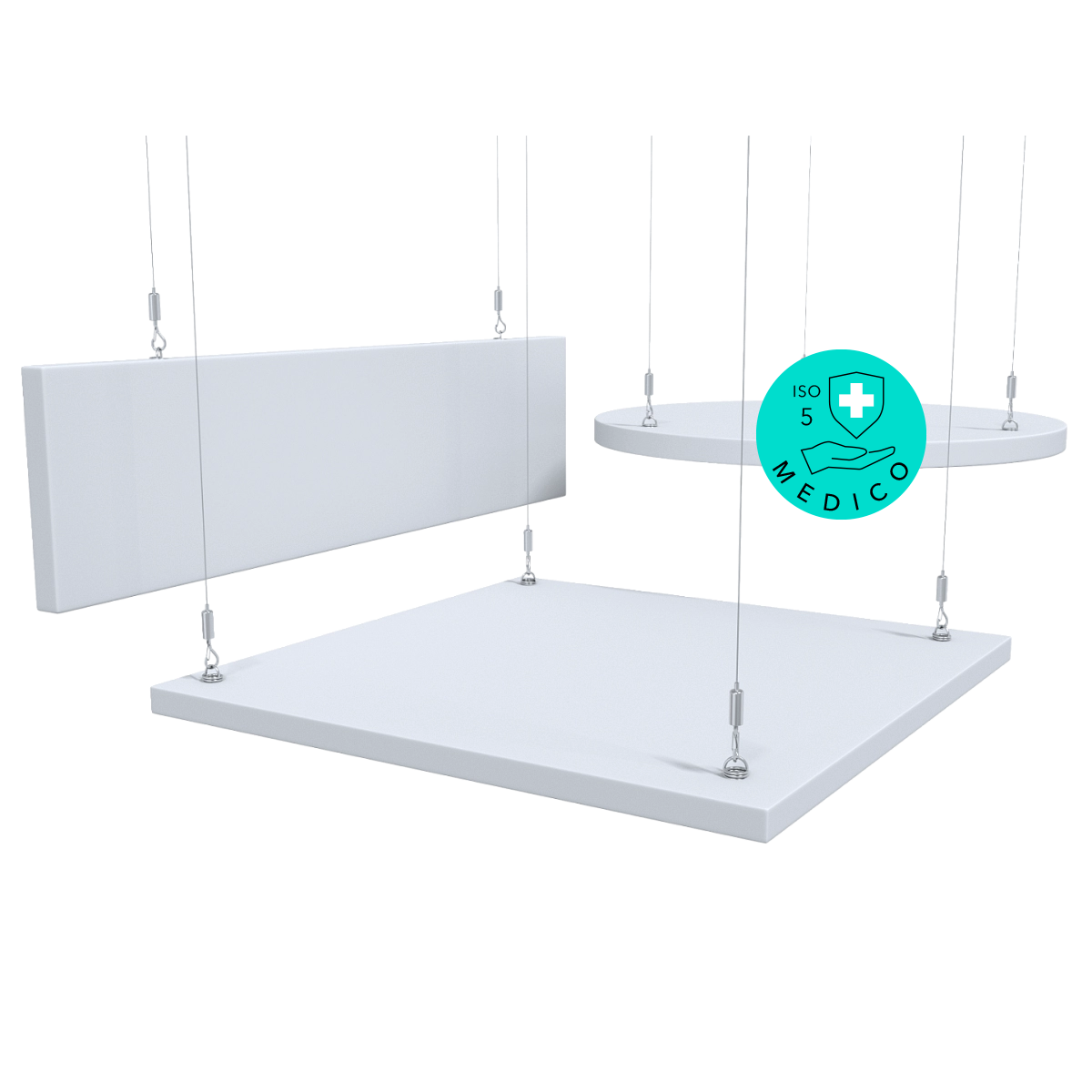

Standard panel sizes, mm | 1200x600 600x600 | 1200x600 600x600 | 2400x1200; 1200x1200 1000x1000; 1200x600 1200x300; 1200x200 circle Ø1200/900/800/600 Twist 1100x1100 | 1200x600 600x600 |
Thiсkness, mm | 22 | 15 | 40 | 15, 20 |
Edge type | X (concealed installation) | E15/E24 | - | A |
Density, kg/m3 | 130 ± 10 | 130 ± 10 | 140 ± 10 | |
Fire safety class | КМ1 | КМ1 | КМ1 | КМ1 |
| Akustiline Medico X, E15/E24 | Akustiline Medico Baffle/Twist | Akustiline Medico A | |
|---|---|---|---|
Acoustic noise reduction coefficient, NRC | 0.80 | 1.00 | 0.80-1.00 |
| Edge type | Scheme |
|---|---|

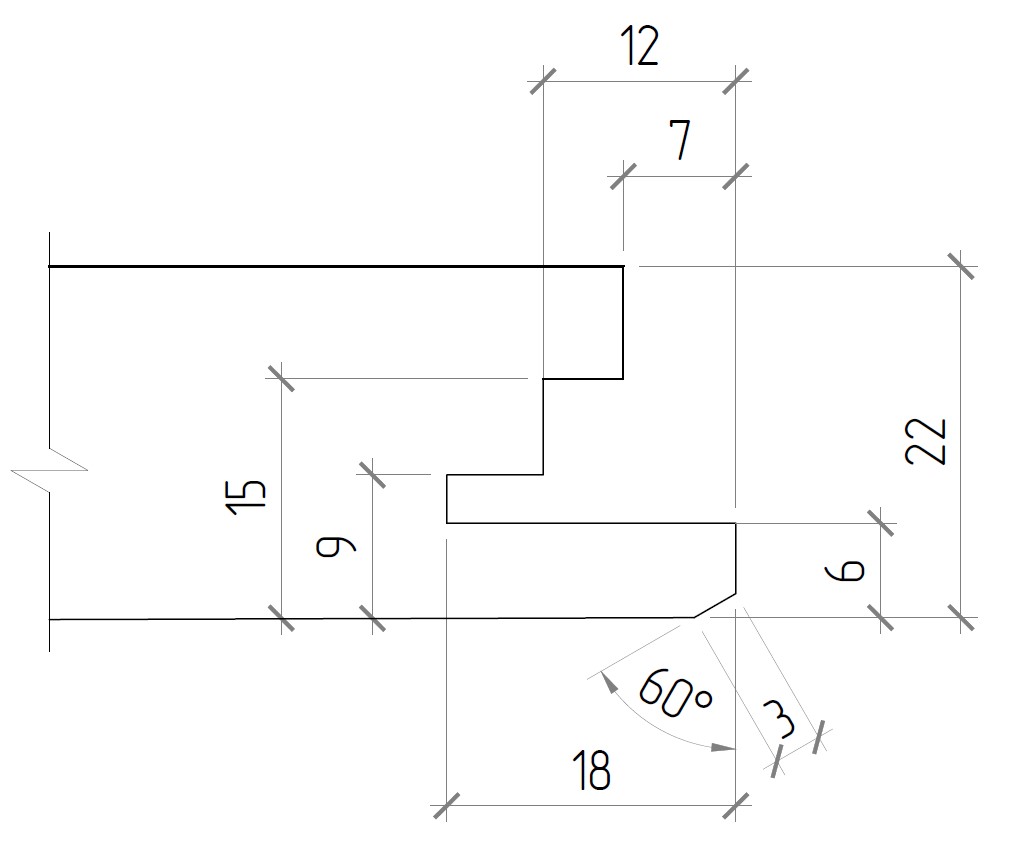

X (concealed installation) |  |

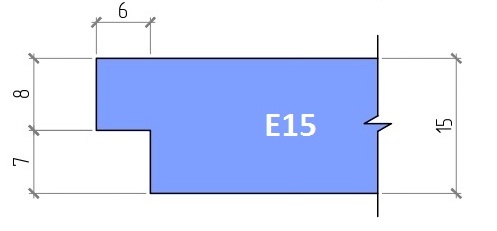

E15 |  |

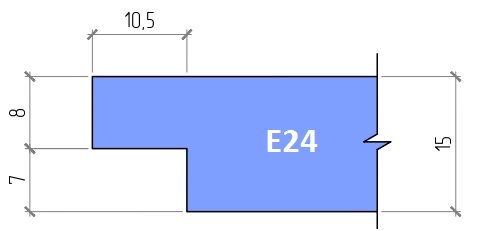

E24 |  |
Storage period is 24 months, subject to storage and transportation conditions.
After the warranty period of storage has expired, the products must be checked for compliance with the declared characteristics and, if they comply with the declared characteristics, the period of storage may be extended.
The panels shall be stored in packaged form, stacked, separately by type, brand and size, in covered warehouses with a relative air humidity of no higher than 80%, excluding conditions of direct exposure to moisture in droplet liquid form. The height of a stack of panels packed in film or paper during storage and transportation shall not exceed 2 m. Before shipping the panels to the consumer, they shall be kept in the warehouse for at least 24 hours.
- For vertical storage - no more than 4 boxes in a vertical row.
- Do not get the product and packaging wet.
- Avoid contact with hard and sharp objects.
- Do not place panels and boxes on ends and corners.
- Fragile. Don't bend. Don't drop it.
- Install the panels higher than human height.
- Touch only with clean gloves.
- Don't hold it by one edge. Possible fracture.
X edge Panels are packaged and shipped in boxes of 12 each.
