Akustiline Baffle
Akustiline Baffle
Product Description

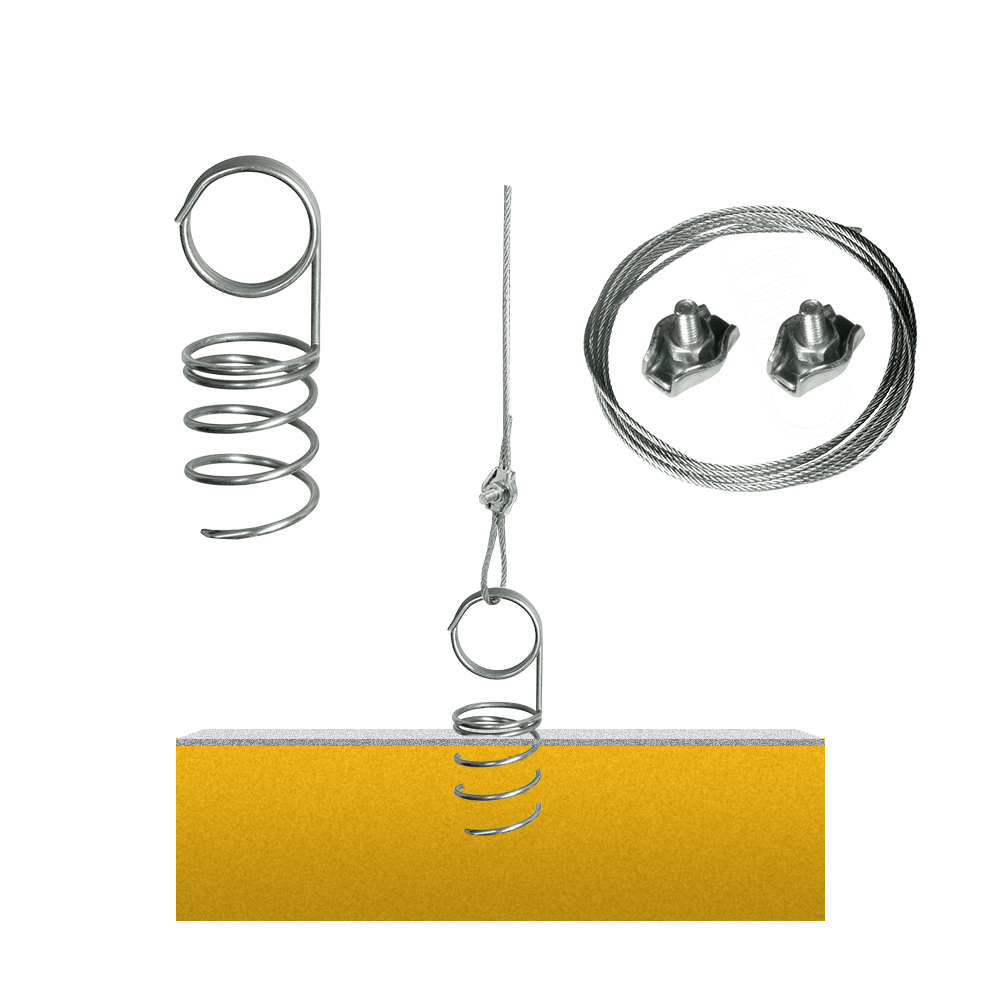

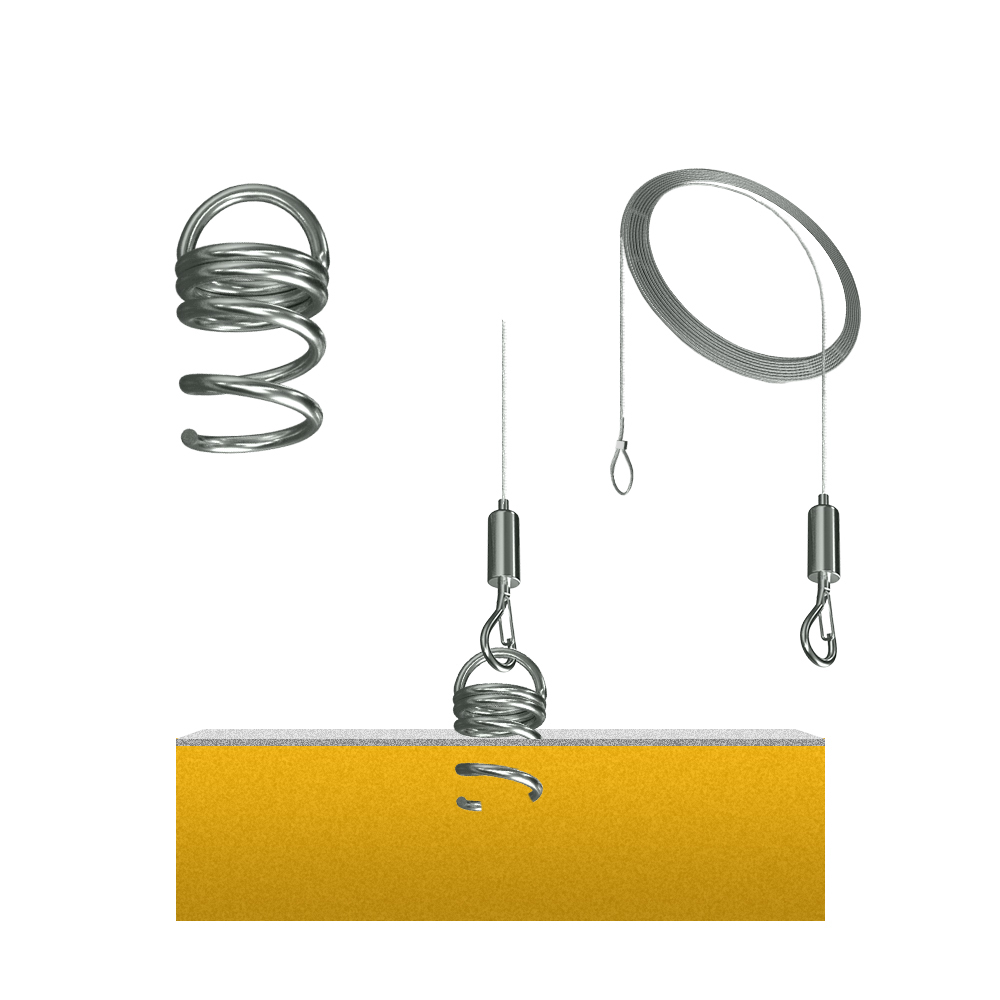

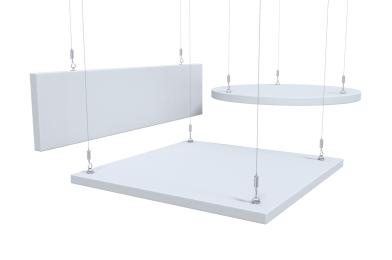

Akustiline Baffle panels are free hanging ceiling elements made from mineral fiber, characterized by excellent soundproofing properties. The panels are flat, can be custom-shaped and coloured any shade. Primary colour – white. The elements are used in interior design as decorative and soundproofing materials. The mounting kit includes height-adjustable wire with a spring.
Application
Composition
- Mineral fiber (Density - 140 ± 10 kg/m3)
- Heavy-duty sound-transmitting coating Daktone
- RAL Chart colouring
performance
and transportation
| Panel shape | Panel size, m | Thiсkness, mm | Panel weight, kg | Number of fixing points |
|---|---|---|---|---|

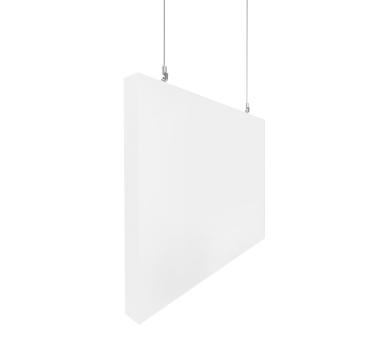

Rectangle | 1.2 х 0.2 / 0.3 / 0.6 | 40 | 1.4 / 1.9 / 3.7 | 4 - for horizontal installation 2 - for vertical installation |
Rectangle | 2.4 х 1.2 | 40 | 14.9 | 8 - for horizontal installation 4 - for vertical installation |

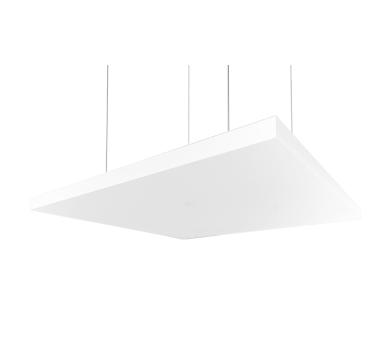

Square | 1.2 х 1.2 / 1 х 1 | 40 | 7.1 / - | 4 - for horizontal installation 2 - for vertical installation |

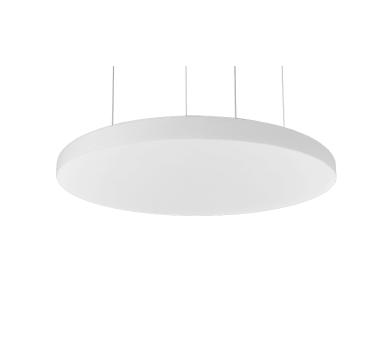

Circle | Ø 1.2 / 0.9 / 0.8 / 0.6 | 40 | 5.9 / 3.3 / 2.6 / 1.5 | 4 - for horizontal installation |
| Characteristics | |
|---|---|
| Painting | Painted to RAL |
| Density, kg/m³ | 140 ± 10 |
| Fire Safety Class | KM1 (G1, V1, D1, T1) |
| Akustiline Baffle | |
|---|---|
Sound absorption index, αw | 1 |
Sound absorption class | A |
Storage period is 24 months, subject to storage and transportation conditions.
After the warranty period of storage has expired, the products must be checked for compliance with the declared characteristics and, if they comply with the declared characteristics, the period of storage may be extended.
- The panels shall be stored in packaged form, stacked, separately by type, brand and size, in covered warehouses with a relative air humidity of no higher than 80%, excluding conditions of direct exposure to moisture in droplet-liquid form.
- The height of a stack of panels packed in film or paper during storage and transportation should not exceed 2 m.
- Before shipping the panels to the consumer, they should be kept in the warehouse for at least 24 hours.
- Installation of other materials on packaged pallets is not permitted.
- Large panels (2.4 x 1.2 m) must be carried by 2 or 4 persons along the long side of the panel. Do not bend the panels.
Products may be stored in dry, clean, enclosed spaces at a temperature not lower than +5°C and a relative humidity not exceeding 65%.
Products may be transported at sub-zero temperatures provided the exposure is short-term and the packaging remains intact.
Storage of products at temperatures below +5°C, as well as prolonged exposure to sub-zero temperatures, is not permitted and may lead to a deterioration in performance characteristics.
